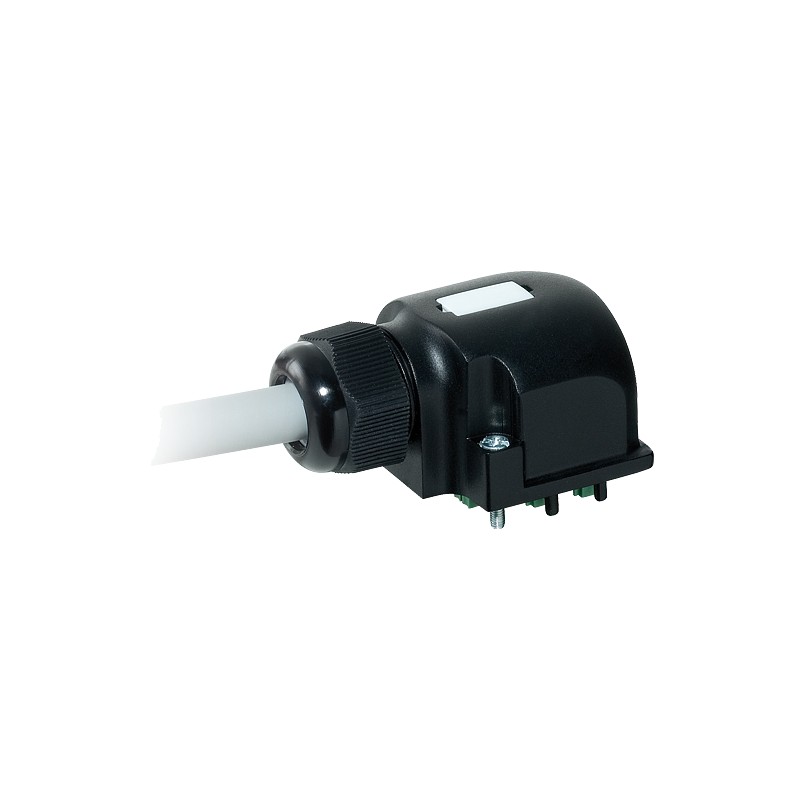

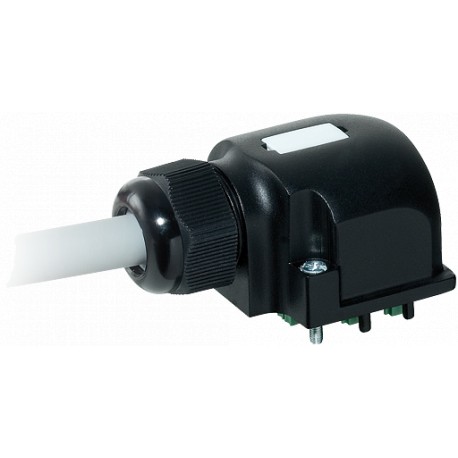

8000-88559-4521000 MURRELEKTRONIK Cap for Distribution Box M12 8-way 5-pole, no potential separation, 10m PU..
8000-88559-4521000
MURRELEKTRONIK
Cap for Distribution Box M12 8-way 5-pole, no potential separation, 10m PUR UL/CSA, 16x0,5+3x1,0
CAP FOR D-BOX M12 8-WAY 5-POLENo pot.-sep. 10m PUR UL/CSA, 16x0,5+3x1,0
CAP FOR D-BOX M12 8-WAY 5-POLE
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
10.0 m
| Housing | Plastic, flame retardant |
|---|---|
| Total current | max. 8 A |
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
| Cable number | 452 |
|---|---|
| No./diameter of wires | 16× 0.5 + 3× 1.0 mm² |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye) |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 11.5 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Cable identification | 452 |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| Cable weight [g/m] | 231,0 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6) |
| Diameter (core) | 16× 0.5 + 3× 1.0 mm² |
| AWG | similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²) |
| Material (wire isolation) | TPE-E |
| Shore hardness (wire isolation) | 55 ±3 D |
| Wire-Ø incl. isolation | 1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²) |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 11.6 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300/300 V AC |
| Test voltage | 2000 V AC |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. |
| Travel speed (C-track) | max. 2 m/s |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879053723 |
| eClass | 27143423 |
| Packaging unit | 1 |
