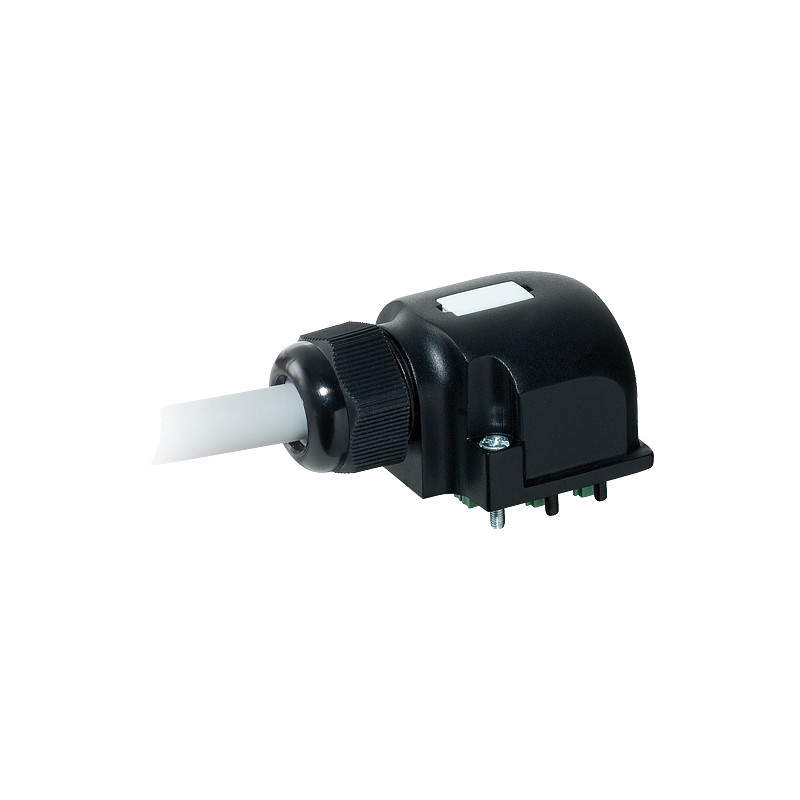

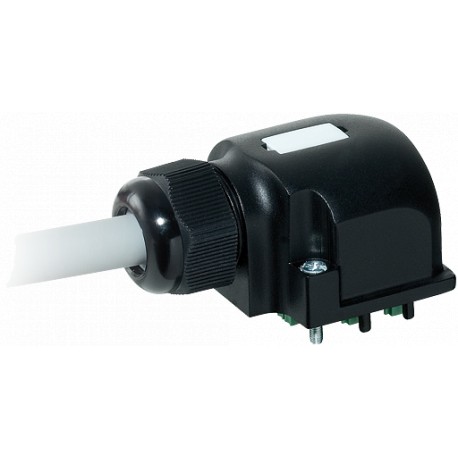

8000-88559-3983000 MURRELEKTRONIK Cap for Distribution Box M12 8-way 5-pole, no potential separation, 30m PU..
8000-88559-3983000
MURRELEKTRONIK
Cap for Distribution Box M12 8-way 5-pole, no potential separation, 30m PUR/PVC 3X0.75+16x0,34
CAP FOR D-BOX M12 8-WAY 5-POLENo pot-sep. 30m PUR/PVC 3X0.75+16x0,34
CAP FOR D-BOX M12 8-WAY 5-POLE
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
30.0 m
| Housing | Plastic, flame retardant |
|---|---|
| Total current | max. 8 A |
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
| Cable number | 398 |
|---|---|
| No./diameter of wires | 16× 0.34 + 3× 0.75 mm² |
| Wire isolation | PVC |
| C-track properties | 2 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR/PVC (UL/CSA) |
| Outer Ø | 10.0 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 398 |
| Cable Type | 2 (PUR/PVC) |
| Approval (cable) | UL (AWM-Style 21441/10955), CE conform |
| Cable weight [g/m] | 165,0 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C) |
| Single wire Ø (core) | 0.15 mm |
| Construction (core) | 19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6) |
| Diameter (core) | 16× 0.34 + 3× 0.75 mm² |
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²) |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 43 ±5 D |
| Wire-Ø incl. isolation | 1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²) |
| Color/numbering of wires | wh, grpk, brgn, ye, whgn, gn, rdbl, vi, grbr, bk, whgr, rd, yebr, pk, whye, gr+bl, br, gnye longitudinally striped |
| Shield | no |
| Material (jacket) | PUR/PVC |
| Shore hardness (jacket) | 87 ±5 A |
| Outer-Ø (jacket) | 10.0 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal voltage | U0/U 300/300 V AC |
| Test voltage | 2000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 2 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879053754 |
| eClass | 27143423 |
| Packaging unit | 1 |
