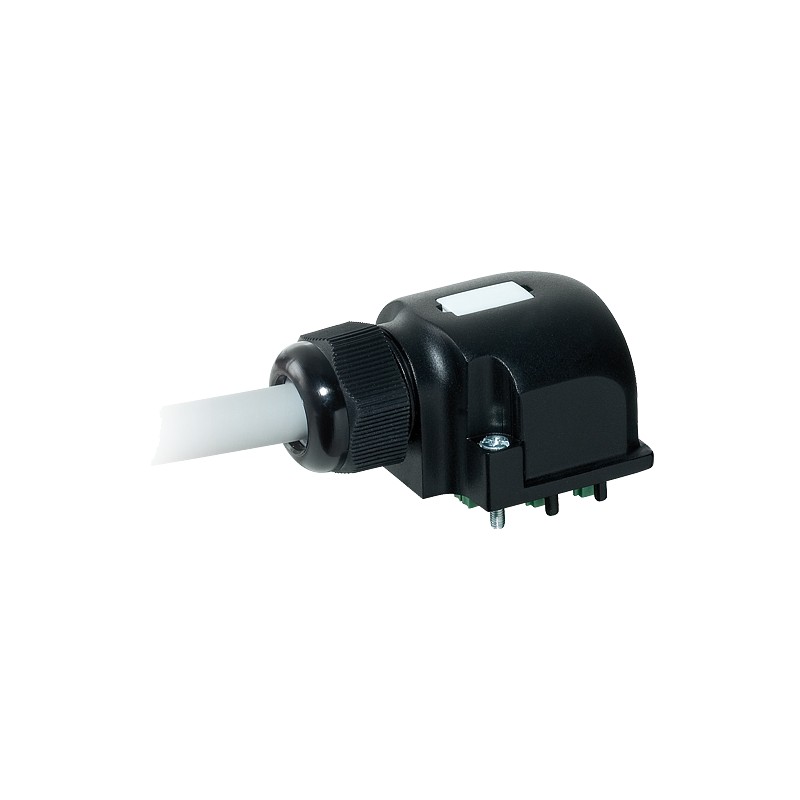

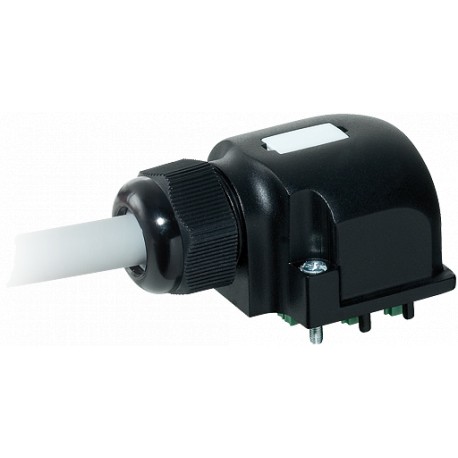

8000-84559-4482500 MURRELEKTRONIK Cap for Distribution Box M12 4-way 5-pole, no potential separation, 25m PU..
8000-84559-4482500
MURRELEKTRONIK
Cap for Distribution Box M12 4-way 5-pole, no potential separation, 25m PUR, 8x0,5+3x1,0
CAP FOR D-BOX M124-WAY 5-POLENo pot.-sep.25m PUR, 8x0,5+3x1,0
CAP FOR D-BOX M124-WAY 5-POLE
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Housing | Plastic, flame retardant |
|---|---|
| Total current | max. 8 A |
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
| Cable number | 448 |
|---|---|
| No./diameter of wires | 8× 0.5 + 3× 1.0 mm² |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye) |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.1 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Material (wire) | Cu wire, bare |
| Construction (core) | 64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6) |
| Bend radius (fixed) | 5× outer Ø |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879055482 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 8000-84559-4482500 8000-84559-4482500 EN_8000-84559-4482500.pdf | 214 Kbytes |
|
| Download general catalog |
|
