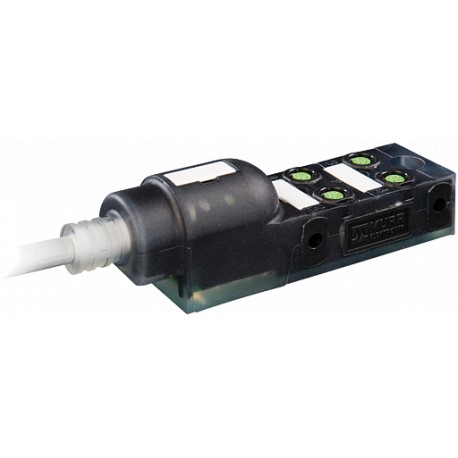

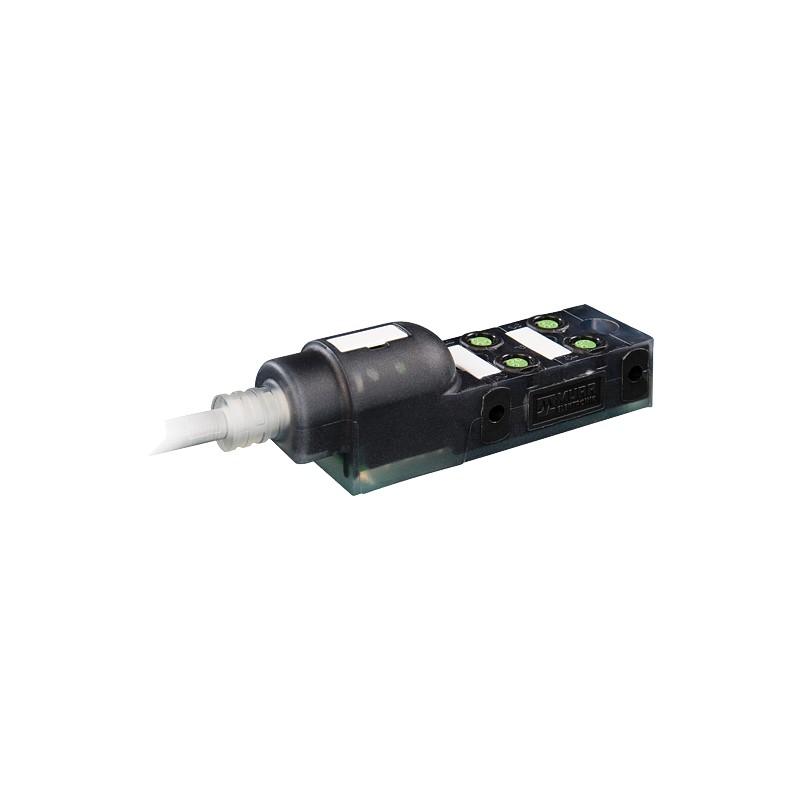

8000-84010-3341500 MURRELEKTRONIK Exact8 4XM8, 3 pole moulded cable 15.0m PUR 4*0,34 + 2*0,75 exit norm..
8000-84010-3341500
MURRELEKTRONIK
Exact8 4XM8, 3 pole moulded cable 15.0m PUR 4*0,34 + 2*0,75 exit norm..
EXACT8, 4XM8, 3 POLE MOULDED CABLE15.0m PUR 4*0,34+2*0,75 exit norm..
EXACT8, 4XM8, 3 POLE MOULDED CABLE
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
15.0 m
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 2 A |
| Total current | max. 8 A |
| Signal per port | 1 - (31-32) |
| Locking of ports | Screw thread (M8×1 mm) |
| Protection | IP65/IP67 |
| Housing | Plastic, flame retardant |
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
| Cable number | 334 |
|---|---|
| No./diameter of wires | 4× 0.34 + 2× 0.75 mm² |
| Wire isolation | TPE-E |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 7.6 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Color (jacket) | gray |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| PIN 1 | (+) |
|---|---|
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| LED (green): Power / LED (yellow): (S1) |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879056557 |
| eClass | 27279219 |
| Packaging unit | 1 |
