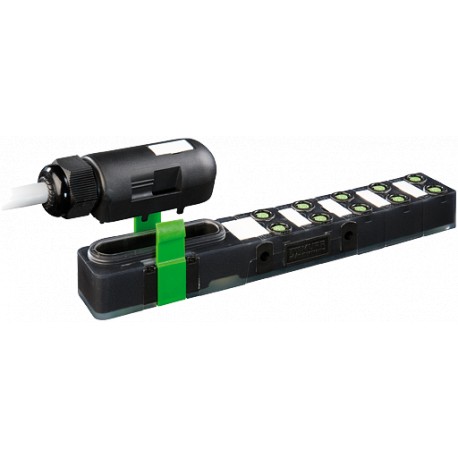

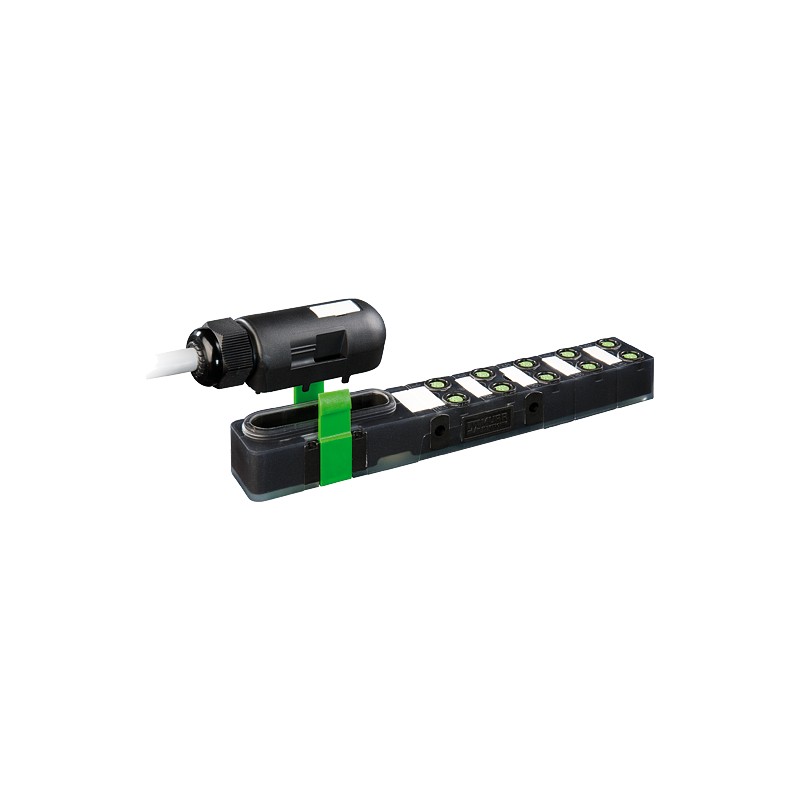

8000-80040-3840500 MURRELEKTRONIK Exact8 10XM8, 3 pole, pluggable cap, spring terminals 5.0m PUR 10*0,34 + 2..
8000-80040-3840500
MURRELEKTRONIK
Exact8 10XM8, 3 pole, pluggable cap, spring terminals 5.0m PUR 10*0,34 + 2*0,75 exit norm..
EXACT8, 10XM8, 3 POLE PLUG. CAP, SPRING-TERM. 5.0m PUR 10*0,34+2*0,75 exit norm..
EXACT8, 10XM8, 3 POLE PLUG. CAP, SPRING-TERM.
Passive distribution systems
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
5.0 m
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 2 A |
| Total current | max. 8 A |
| Signal per port | 1 - (31-32) |
| Connection | Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Housing | Plastic, flame retardant |
| Locking of ports | Screw thread (M8×1 mm) |
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
| Cable number | 384 |
|---|---|
| No./diameter of wires | 10× 0.34 + 2× 0.75 mm² |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.3 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Color (jacket) | gray |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| PIN 1 | (+) |
|---|---|
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| LED (green): Power / LED (yellow): (S1) |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879056885 |
| eClass | 27279219 |
| Packaging unit | 1 |
