8000-00000-4015000 MURRELEKTRONIK Main cable 50m PUR-JB 16*0,34+3*0,75
8000-00000-4015000
MURRELEKTRONIK

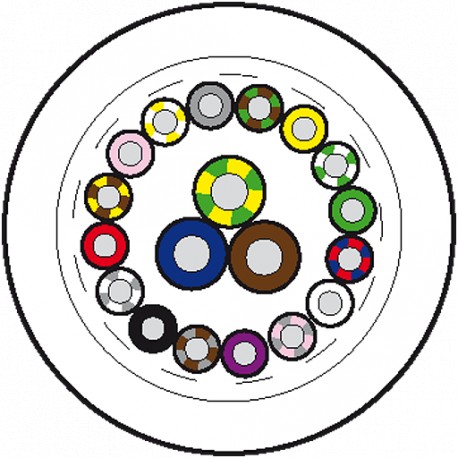

Main cable 50m PUR-JB 16*0,34+3*0,75
50M MAIN CABLE PUR-JB 16*0,34+3*0,75
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 8000-00000-4015000 |
| Weight: | 9.63 kg |

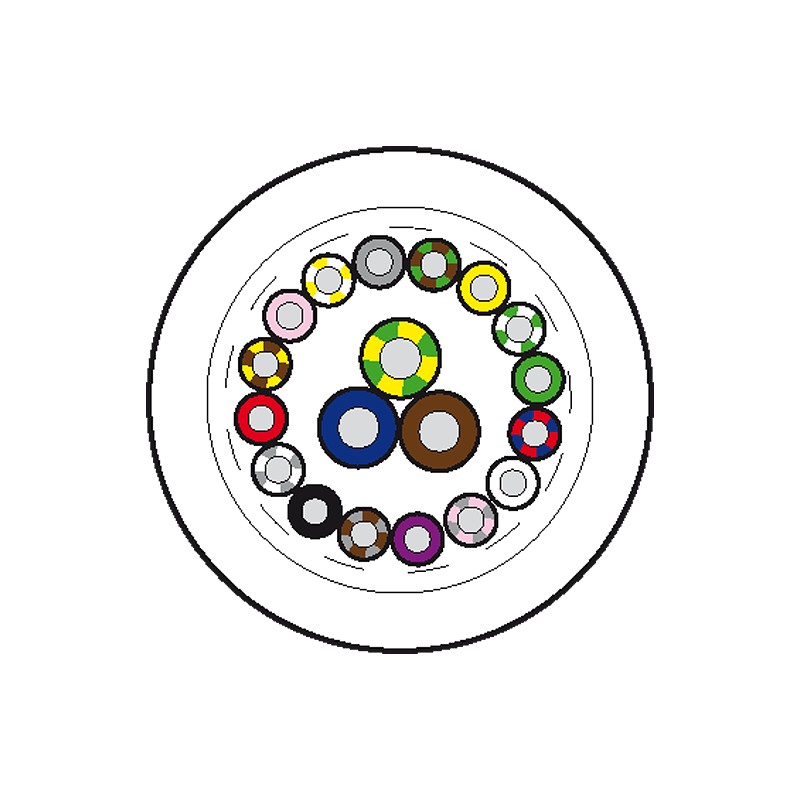

16×0.34 + 3×0.75 mm²
| Cable number | 401 |
|---|---|
| No./diameter of wires | 16×0.34 + 3×0.75 mm² |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye) |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 11.7 mm ±5% |
| Bend radius (moving) | 12 × outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Cable identification | 401 |
| Approval (cable) | UL (AWM-Style 20233/10042), CSA; CE conform |
| Cable weight [g/m] | 237,6 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 53 Ω/km (0.34 mm²); max. 26 Ω/km (0.75 mm²); (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 42 × 0.1 mm (0.34 mm²); 96 × 0.1 mm (0.75 mm²); (multi-strand wire class 6) |
| Diameter (core) | 16×0.34 + 3×0.75 mm² |
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²) |
| Material (wire isolation) | TPE-E |
| Shore hardness (wire isolation) | 55 ±5 D |
| Wire-Ø incl. isolation | 1.3 ±5% mm (0.34 mm²); 2.6 ±5% (0.75 mm²) |
| Color/numbering of wires | grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye |
| Shield | yes |
| min. 80% | |
| Material (jacket) | PUR |
| Shore hardness (jacket) | 94 ±5 A |
| Outer-Ø (jacket) | 11.7 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals (ISO 6722) |
| Nominal voltage | 300/300 V AC |
| Test voltage | 2 000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Bend radius (fixed) | 10 × outer Ø |
| Bend radius (moving) | 12 × outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel speed (C-track) | max. 2 m/s |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879057110 |
| eClass | 27062011 |
| Packaging unit | 1 |
