MURRELEKTRONIK
1

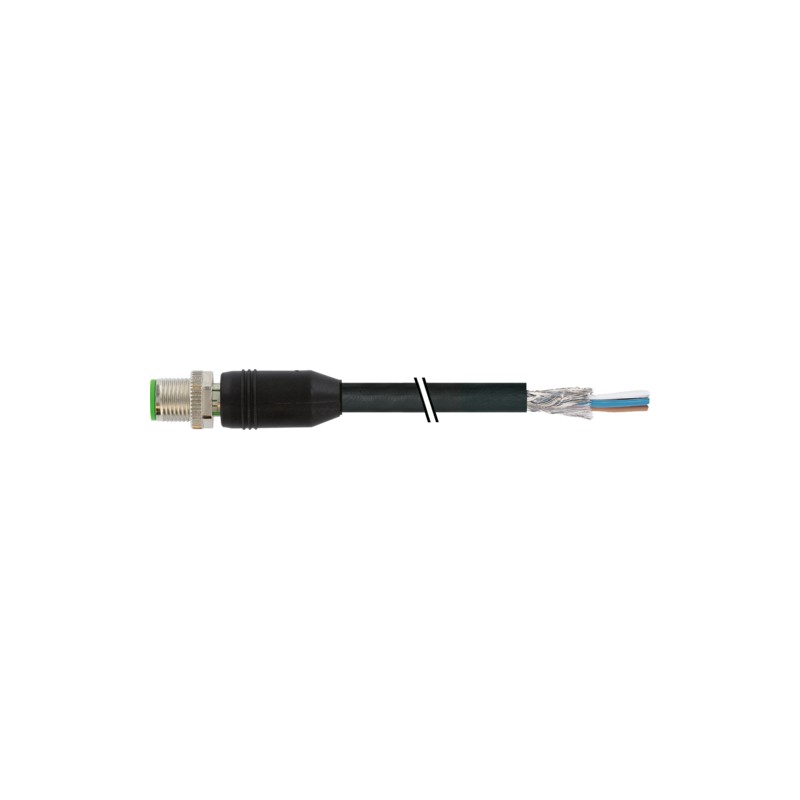

M12 male 0° shielded, D-cod. with cable EN PUR 2x2xAWG22 shielded gn UL/CSA 15m BMW No.: 3A95563
M12 male 0° shielded, D-cod. with cable EN
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Form | 14541 |
---|
Operating voltage | max. 60 V DC |
---|---|
Rated surge voltage | 1.5 kV |
No. of poles | 4 |
Transfer parameters | CAT5, Class D (ISO/IEC 11801) |
Material group | IEC 60664-1, category I |
Mounting method | inserted, tightened |
---|---|
Material (contact) | Copper alloy |
Material (contact surface) | Au |
Pollution Degree | 3 |
Temperature range | -25...+85 °C, depending on cable quality |
Cable identification | 794 |
---|---|
Approval (cable) | cURus (AWM-Style 20549/10578), CE-conform |
Cable weight [g/m] | 75,87 g |
Material (wire) | Cu wire, bare |
Resistor (core) | max. 55 Ω/km (20 °C) |
Construction (core) | 7× 0.254 mm |
Diameter (core) | 1× 4× AWG22/7 |
AWG | similar to AWG 22 |
Material (wire isolation) | PE |
Wire-Ø incl. isolation | 1.55 mm ±5% |
Color/numbering of wires | wh, ye, bl, or |
Shield | yes |
optical shield cover | min. 85% |
Material (jacket) | PUR |
Outer-Ø (jacket) | 6.7 mm ±5% |
Color (jacket) | green |
chemical resistance | Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std. |
thermal resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
Nominal voltage | 300 V |
Temperature range (fixed) | -40...+80 °C |
Temperature range (mobile) | -30...+70 °C |
Bend radius (fixed) | 6× outer Ø |
Bend radius (moving) | 12× outer Ø |
country of origin | DE |
---|---|
customs tariff number | 85444290 |
EAN | 4048879840415 |
eClass | 27061801 |
Packaging unit | 1.000 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
7356-14541-7941500 7356-14541-7941500 EN_7356-14541-7941500.pdf | 123 Kbytes | |
Download general catalog |
