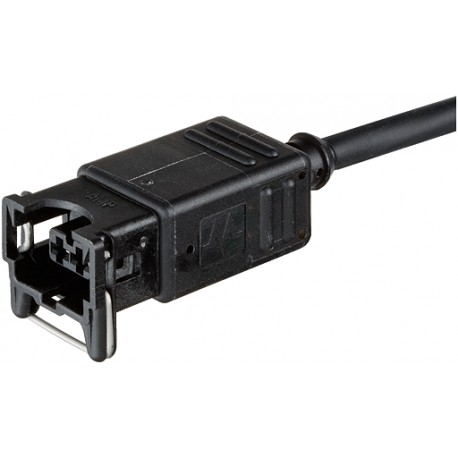

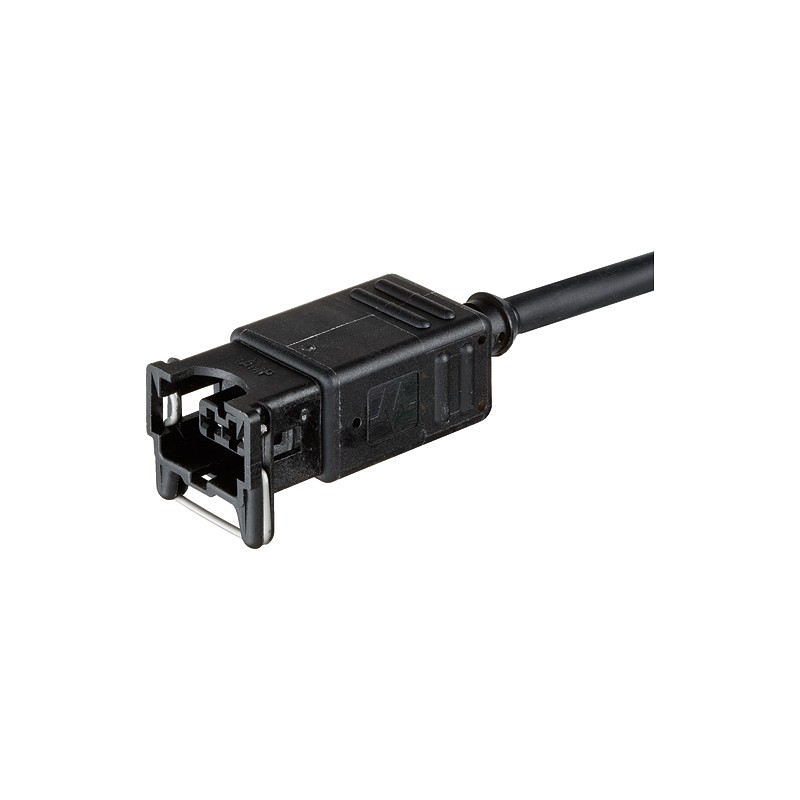

7080-70021-R211000 MURRELEKTRONIK MSUD double valve plug form A 18mm with cable HM2 4x1 bk 10m
7080-70021-R211000
MURRELEKTRONIK
MSUD double valve plug form A 18mm with cable HM2 4x1 bk 10m
Valve plug MJC 0° with cable LEDRADOX EM 104 2x0.75 bk 10m
Junior Timer valve 0° with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲10...30 V AC/DC
LED
with cable sleeves
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.
| Form | 70021 |
|---|
| Cable identification | R21 |
|---|---|
| Approval (cable) | DIN EN 45545-2, CE conform |
| Cable weight [g/m] | 48,40 |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.23 mm |
| Construction (core) | 19× 0.23 mm |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | Radox EI 303 |
| Wire-Ø incl. isolation | 1.62 mm ±5% |
| Color/numbering of wires | wh (bk num) |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | Radox EM 104 |
| Outer-Ø (jacket) | 4.75 mm ±5% |
| Color (jacket) | black |
| Nominal voltage | 600/1000 V AC |
| Test voltage | 3500 V AC |
| Current load capacity | according to DIN VDE 0298-4 |
| Temperature range (fixed) | -50...+120 °C |
| Temperature range (mobile) | -25...+90 °C |
| Bend radius (fixed) | 3× outer-Ø |
| Bend radius (moving) | 4× outer-Ø |
| Jacket Color | black |
| Operating voltage | 10...30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| LED display | yellow |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Housing | Black plastic, flame retardant |
| Pollution Degree | 3 |
|---|---|
| Stripping length (jacket) | 50 mm |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879686402 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7080-70021-R211000 7080-70021-R211000 EN_7080-70021-R211000.pdf | 185 Kbytes |
|
| Download general catalog |
|
