7072-72041-7541500 MURRELEKTRONIK valve plug MDC06-2s short LED+Diode with cable PUR 2x0.75 bk UL/CSA+drag c..
7072-72041-7541500
MURRELEKTRONIK

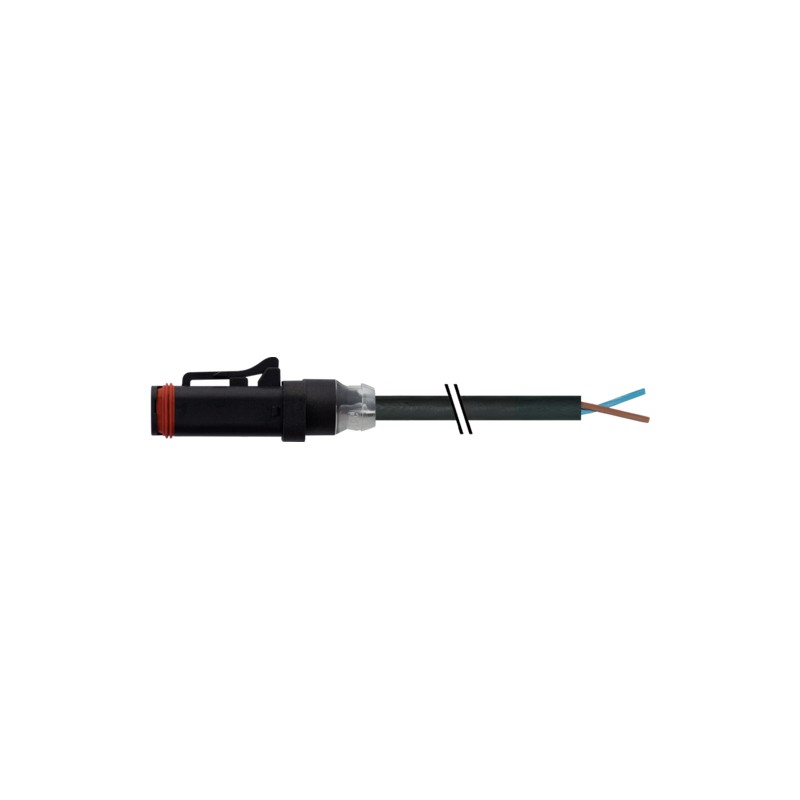

Valve plug MDC06-2s short LED+Diode with cablePUR 2x0.75 bk UL/CSA+drag ch. 15m
Valve plug MDC06-2s short LED+Diode with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Xtreme - Outdoor
Male straight
Further cable lengths on request.
12...24 V DC
2-pole
Flyback diode + LED
Compatible with:
Deutsch DT06-2S
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 72041 |
|---|
| Operating voltage | 12...24 V DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 8 A |
| No. of poles | 2-pole |
| Material group | IEC 60664-1, category III |
| LED display | green |
| Locking of ports | Snap-in connector |
| Material | PA |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Housing | Amphenol AT06-2S |
| Additional suppressor | free-wheeling diode |
| Mounting method | inserted |
|---|---|
| Material (contact) | Copper alloy |
| Material (contact surface) | Ni |
| Material (gasket) | Silicon |
| Pollution Degree | 2 |
| Stripping length (jacket) | 20 mm |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable identification | 754 |
|---|---|
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable weight [g/m] | 40,7 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.15 mm |
| Construction (core) | 42× 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PP |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 70 ±5 D |
| Wire-Ø incl. isolation | 1.7 mm ±5% |
| Color/numbering of wires | br, bl |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Shore hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 5.0 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| thermal resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Nominal voltage | 300 V AC |
| Test voltage | 2500 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Torsion stress | ±180°/m |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| Torsion speed | 35 cycles/min |
| Product article number of manufacturer | 7072-72041-7541500 |
|---|---|
| Cable length | 15 m |
