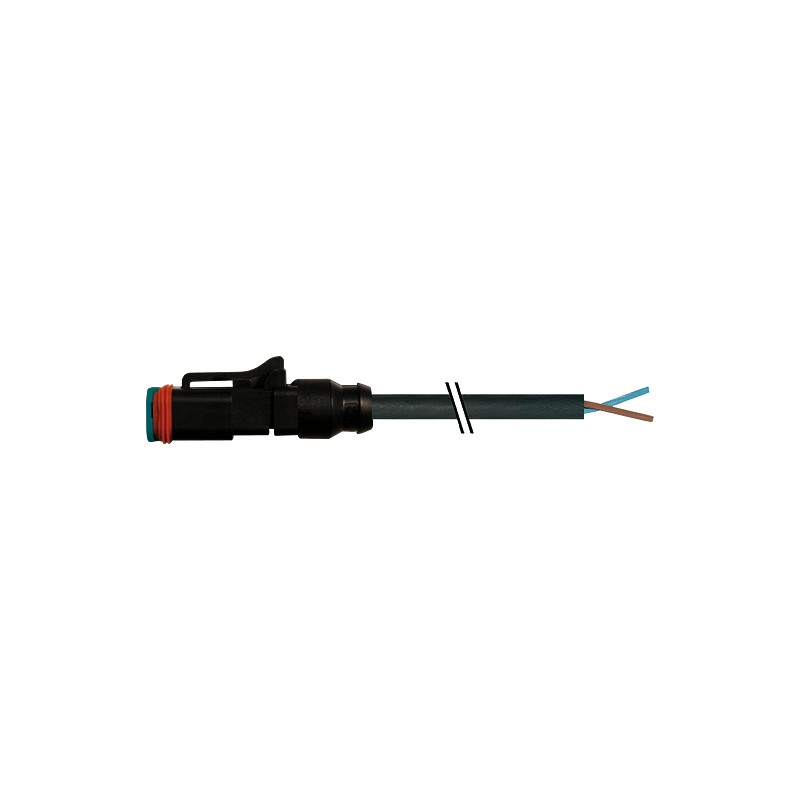

7072-72011-7500500 MURRELEKTRONIK Valve plug MDC06-2s short with cable PUR 2x0.75 black 5m
7072-72011-7500500
MURRELEKTRONIK
Valve plug MDC06-2s short with cable PUR 2x0.75 black 5m
valve plug MDC06-2s short with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Male straight
12...230 V AC/DC
2-pole
without components
Compatible with:
Deutsch DT06-2S
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 72011 |
|---|
| Operating voltage | 12...230 V AC/DC |
|---|---|
| Rated surge voltage | 2.5 kV |
| Operating current per contact | max. 8 A |
| No. of poles | 2-pole |
| Material group | IEC 60664-1, category I |
| LED display | no |
| Locking of ports | Snap-in connector |
| Protection | IP68 inserted and tightened |
| Material | PA |
| suitable for corrugated tube (internal Ø) | 11 mm |
| Housing | Amphenol AT06-2S or Deutsch DT06-2S |
| Additional suppressor | without components |
| Mounting method | inserted |
|---|---|
| Material (contact) | Copper alloy |
| Material (contact surface) | Ni |
| Material (gasket) | Silicon |
| Pollution Degree | 3 |
| Stripping length (jacket) | 20 mm |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable number | 750 |
|---|---|
| No./diameter of wires | 2× 0.75 mm² |
| Wire isolation | PVC (br, bl) |
| Jacket Color | black |
| Material (jacket) | PUR/PVC |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Cable identification | 750 |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 48,40 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Color/numbering of wires | br, bl |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | PUR/PVC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (moving) | 15× outer Ø |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879738484 |
| eClass | 27279218 |
| Packaging unit | 1 |
