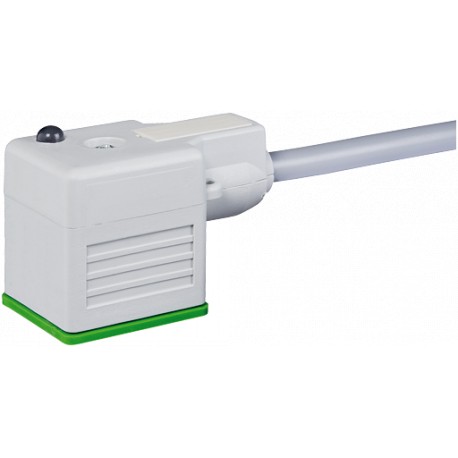

7014-18021-2162000 MURRELEKTRONIK MSUD valve plug form A 18mm with cable F&B PVC 3x0.75 gray 20m
7014-18021-2162000
MURRELEKTRONIK
MSUD valve plug form A 18mm with cable F&B PVC 3x0.75 gray 20m
MSUD valve plug A-18mm with cable F&BPVC 3x0.75 gy 20m
MSUD valve plug form A 18mm with cable F&B
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲The resistance to aggressive media should be individually tested for your application. Further details on request.
Form A (18 mm)
24 V AC/DC ±25%
LED and suppression
3-pole
Stainless steel 1.4578 (V4A)
Bridged PE
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
| Form | 18021 |
|---|
| Operating voltage | 24 V AC/DC ±25% |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Current consumption | approx. 12 mA |
| Material group | IEC 60664-1, category I |
| Switch off peak | max. 55 V |
| Switch off delay time | max. 20 ms |
| LED display | yellow |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Protection | IP65, IP68, IP69K inserted and tightened (EN 60529) |
| Locking material | Stainless steel 1.4578 (V4A) |
| Material | PBT |
| Housing | Gray plastic |
| Additional suppressor | Diode/Z-Diode |
| Pollution Degree | 3 |
|---|---|
| Material (gasket) | PUR |
| Temperature range | -25...+85 °C, depending on cable quality |
| No./diameter of wires | 3× 0.75 mm² |
|---|---|
| Wire isolation | PVC (bk num, gnye) |
| Material (jacket) | PVC |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -30...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Cable identification | 216 |
| Cable Type | 1 (PVC) |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 63,80 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 3× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 43 ±5 D |
| Wire-Ø incl. isolation | 1.8 mm ±5% |
| Color/numbering of wires | bk numbered, gnye longitudinally striped |
| Stranding combination | 3 wires twisted |
| Shield | no |
| Material (jacket) | PVC |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (jacket) | 80 ±5 A |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300/500 V AC |
| Test voltage | 3000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Jacket Color | gray |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879624824 |
| eClass | 27279218 |
| Packaging unit | 1 |
