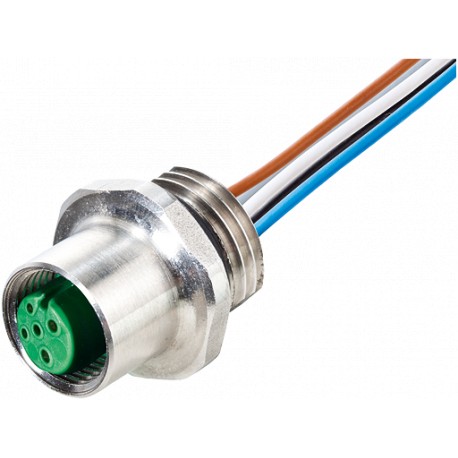

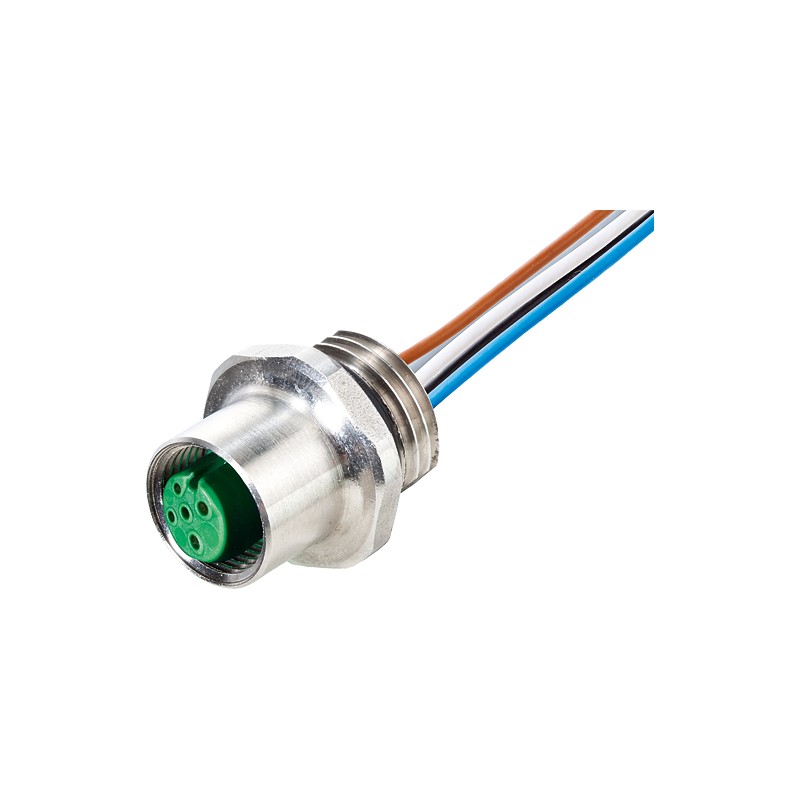

7014-17181-9730100 MURRELEKTRONIK M12 female flange plug A-cod. front mount PP 8x0,25 1m
7014-17181-9730100
MURRELEKTRONIK
10
M12 female flange plug A-cod. front mount PP 8x0,25 1m
M12 female recept. A-cod. front F<(>&<)>BPUR-wires 8x0.25 1m
M12 FEMALE FLANGE PLUG A CODED FRONT MOUNT F&B
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Flange female
M12, 8-pole
Front mounting
Stainless steel 1.4404 (V4A)
| Form | 17181 |
|---|
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 2 A |
| No. of poles | 8 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Stainless steel 1.4404 (V4A) |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
| Cable number | 973 |
|---|---|
| No./diameter of wires | 8× 0.25 mm² |
| Wire isolation | PUR (wh, br, gn, ye, gr, pk, bl, rd) |
| Outer Ø | 1.25 mm ±5% |
| Bend radius (fixed) | 10× outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879364355 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7014-17181-9730100 7014-17181-9730100 EN_7014-17181-9730100.pdf | 199 Kbytes |
|
