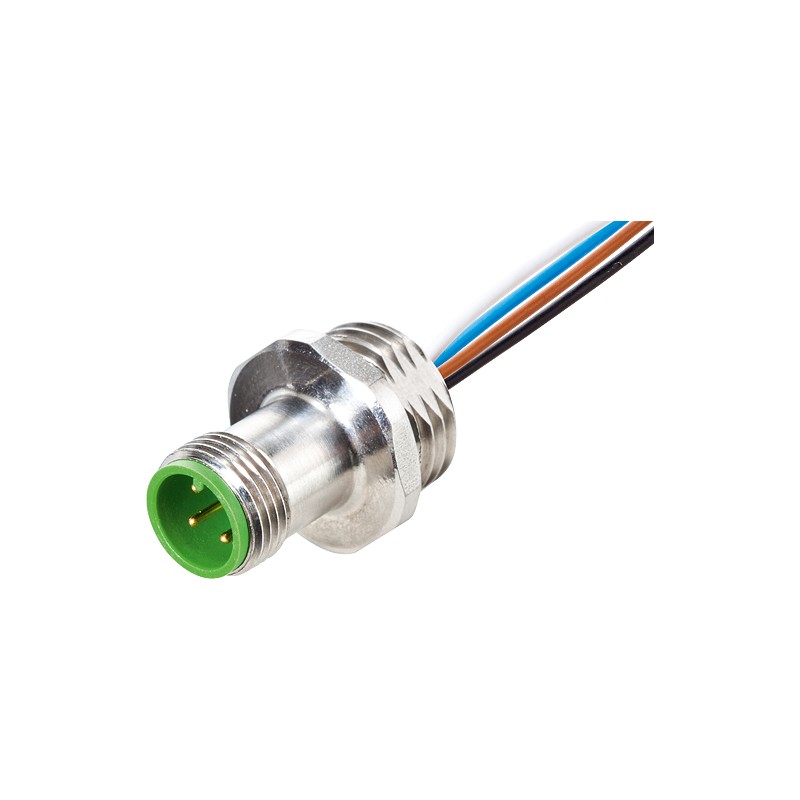

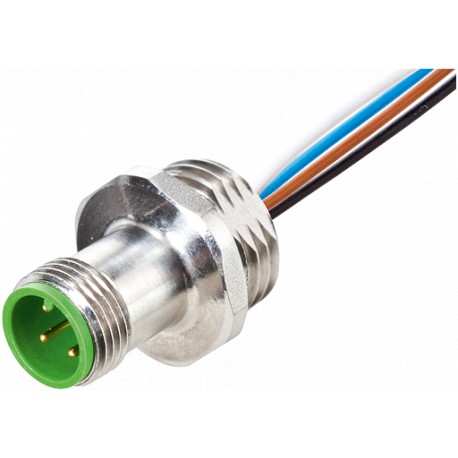

7014-13521-9720100 MURRELEKTRONIK M12 male receptacle A-cod. front mount F&B PP 5X0.34 1m
7014-13521-9720100
MURRELEKTRONIK
M12 male receptacle A-cod. front mount F&B PP 5X0.34 1m
M12 male recept. A-cod. front F&BPP-wires 5x0.34 1m
M12 male receptacle A-cod. front mount F&B
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Flange male
M12, 5-pole
Front mounting
with multi-strand wire
Stainless steel 1.4404 (V4A)
| Form | 13521 |
|---|
| Operating voltage | max. 125 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Material | Stainless steel 1.4404 (V4A) |
| Locking material | Stainless steel 1.4404 (V4A) |
| suitable for corrugated tube (internal Ø) | without |
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Material (gasket) | EPDM |
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
| Cable number | 972 |
|---|---|
| No./diameter of wires | 5× 0.34 mm² |
| Wire isolation | PUR (br, wh, bl, bk, gr) |
| Outer Ø | 1.3 mm ±5% |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Material (wire) | Cu wire, tin plated |
| AWG | max. 58 Ω/km (20 °C) |
| Nominal voltage | 300 V AC |
| Test voltage | 1500 V AC |
| Bend radius (fixed) | 5× outer Ø |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879363631 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7014-13521-9720100 7014-13521-9720100 EN_7014-13521-9720100.pdf | 198 Kbytes |
|
| Download general catalog |
|
