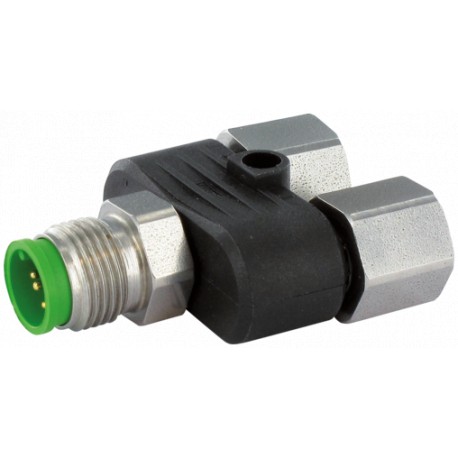

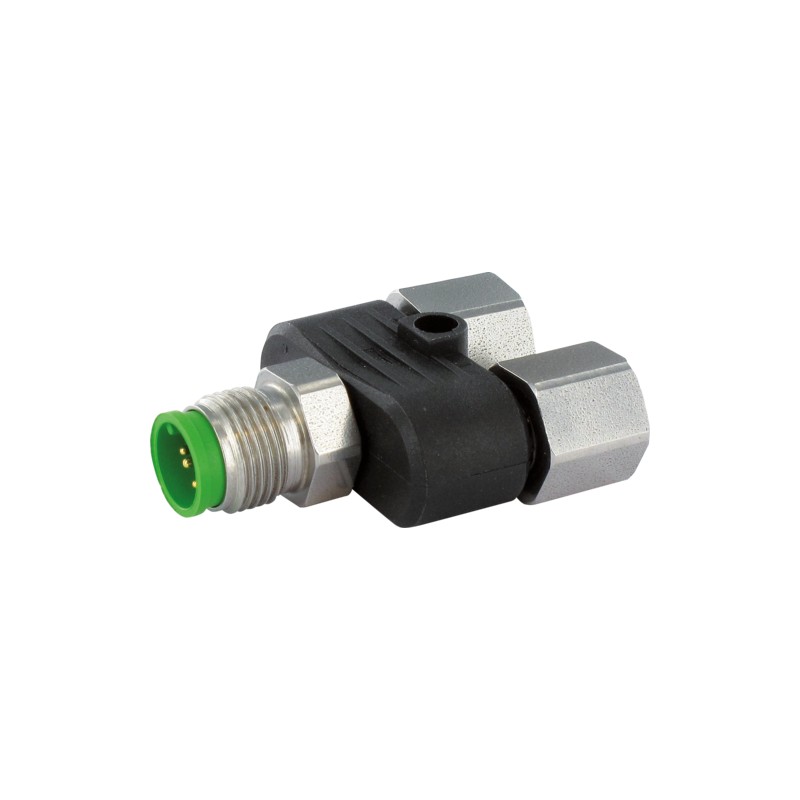

7002-42121-0000000 MURRELEKTRONIK T-coupler 5 pole male / 4 pole female M12 shielded V2A
7002-42121-0000000
MURRELEKTRONIK
10
T-coupler 5 pole male / 4 pole female M12 shielded V2A
T-Coupler M12 male/ M12 female A-cod. shielded V2A5-pol. / 4-pol.
T-Coupler M12 male/ M12 female A-cod. shielded V2A
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Male straight – females straight
M12 – M12, 5-pole
shielded
Distribution function (NO)
V2A nut/screw
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 42121 |
|---|
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Stainless steel 1.4305 (V2A) |
| Temperature range | -25...+85 °C |
|---|
| Product article number of manufacturer | 7002-42121-0000000 |
|---|
