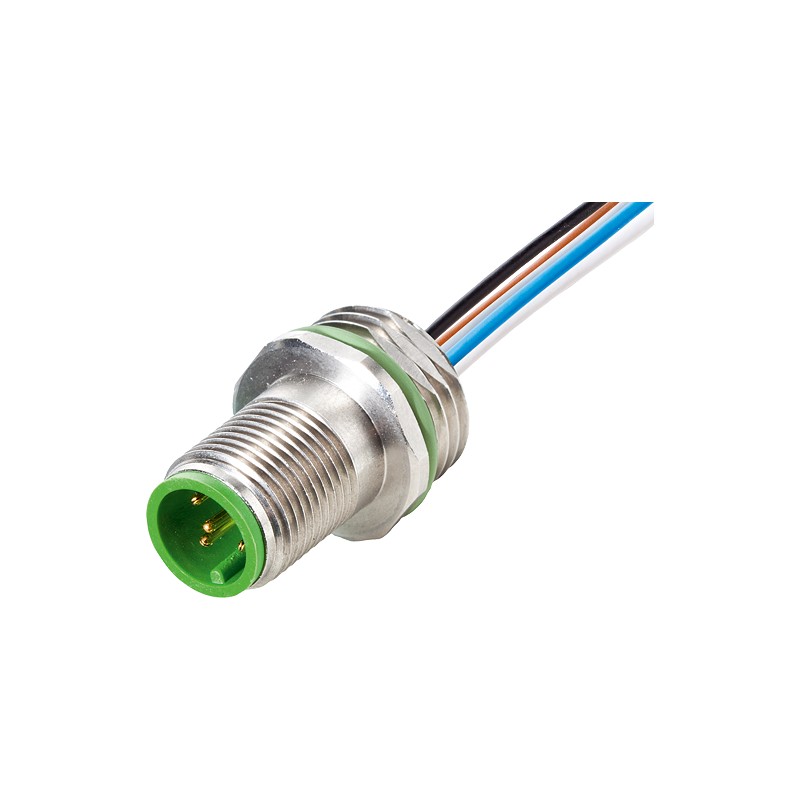

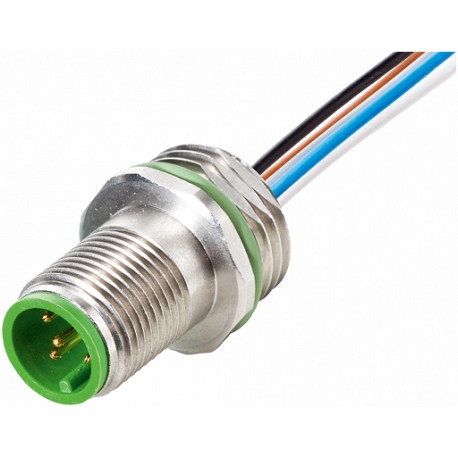

7002-19161-9790100 MURRELEKTRONIK M12 male receptacle A-cod. front mount V2A PP 12x0,14 1m
7002-19161-9790100
MURRELEKTRONIK
10
M12 male receptacle A-cod. front mount V2A PP 12x0,14 1m
M12 male recept. A-cod. front V2ATPE-wires 12x0.14 1m
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7002-19161-9790100 |
| Weight: | 0.086 kg |
M12, 12-pole
Front mounting
with multi-strand wire
Stainless steel 1.4305 (V2A)
| Form | 19161 |
|---|
| Cable number | 979 |
|---|---|
| No./diameter of wires | 12 × 0.14 mm² |
| Wire isolation | PP (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl) |
| Outer Ø | 1.25 mm ±5% |
| Bend radius (fixed) | 5 × outer Ø |
| Bend radius (moving) | 15 × outer Ø |
| Temperature range (fixed) | -40...+85 °C |
| Temperature range (mobile) | -25...+85 °C |
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 1.5 A |
| No. of poles | 12 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Stainless steel 1.4305 (V2A) |
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879325424 |
| eClass | 27279218 |
| Packaging unit | 1 |
