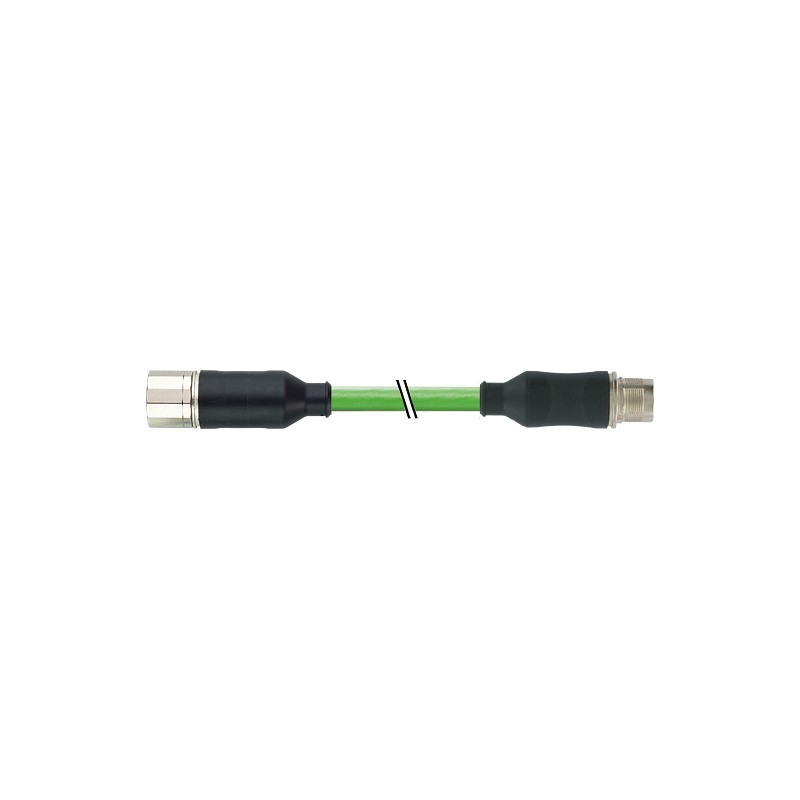

7000-SS265-8111000 MURRELEKTRONIK M23 Signal cable Specification: 6FX8002-2CA34-1BA0
7000-SS265-8111000
MURRELEKTRONIK
M23 Signal cable Specification: 6FX8002-2CA34-1BA0
M23 SIGNAL CABLESpecification: 6FX8002-2CA34-1BA0
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-SS265-8111000 |
| Weight: | 1.505 kg |
Female straight – male straight
M23 – M23, 17-pole
shielded
without cable sleeves
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | SS265 |
|---|
| Cable number | 811 |
|---|---|
| No./diameter of wires | 3×(2×0.14D) + 2×0.5 + 4×0.14 + 4×0.22)-C |
| Wire isolation | PP (ye, gn, bk, br, rd, or, brrd brbl, gr, bl, whye, whbk, brye, brgr, gnbk, gnrd) |
| C-track properties | 10 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.5 mm ±5% |
| Bend radius (moving) | 12 × outer Ø |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Shield | yes |
| Bend radius (fixed) | 10 × outer Ø |
| Approval (cable) | UL (AWM-Style 20236/1589), CSA; CE |
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread M23 × 1 mm (recommended torque 2.0 Nm) self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | without |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| customs tariff number | 85444290 |
|---|---|
| EAN | 4048879483476 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-SS265-8111000 7000-SS265-8111000 7000-SS265-8111000_Data_Sheet_1.pdf | 172 Kbytes |
|
