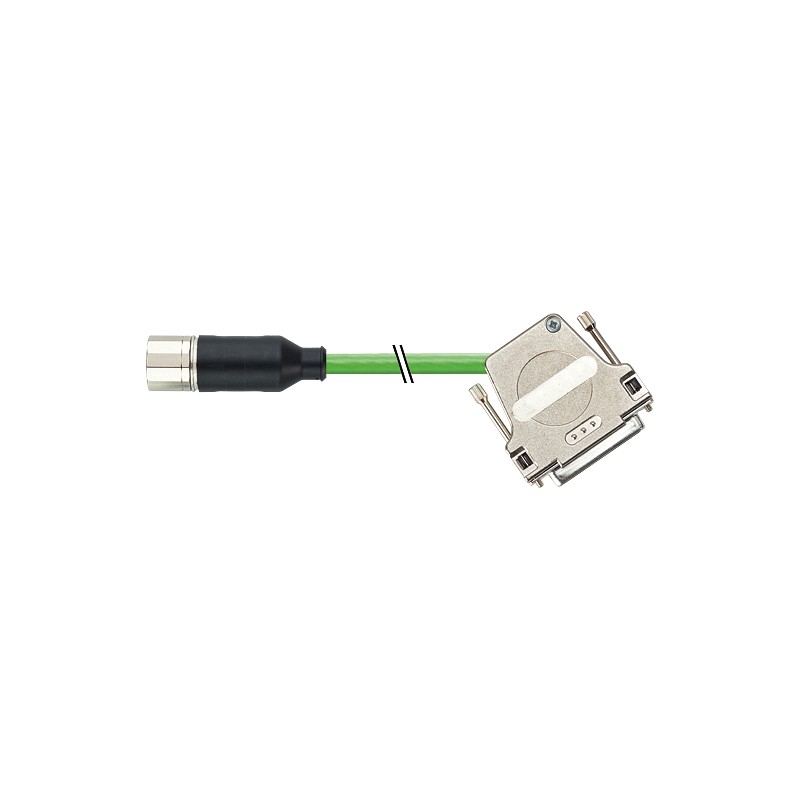

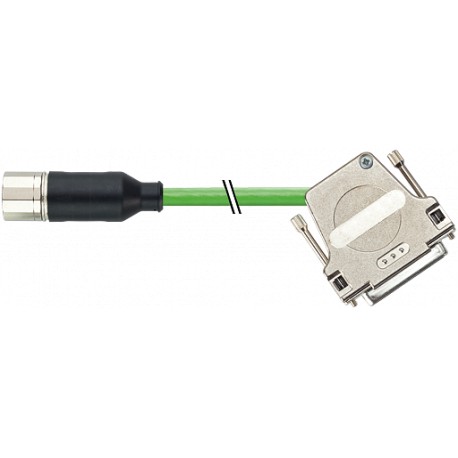

7000-SS261-8114000 MURRELEKTRONIK M23 Signal cable Specification: 6FX8002-2CA31-1EA0
7000-SS261-8114000
MURRELEKTRONIK
M23 Signal cable Specification: 6FX8002-2CA31-1EA0
M23 SIGNAL CABLESpecification: M6FX8002-2CA31-1EA0
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-SS261-8114000 |
| Weight: | 5.065 kg |
Female straight – female 90°
M23, 17-pole – SUB-D25
shielded
without cable sleeves
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | SS261 |
|---|
| Cable number | 811 |
|---|---|
| No./diameter of wires | 3×(2×0.14D) + 2×0.5 + 4×0.14 + 4×0.22)-C |
| Wire isolation | PP (ye, gn, bk, br, rd, or, brrd brbl, gr, bl, whye, whbk, brye, brgr, gnbk, gnrd) |
| C-track properties | 10 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.5 mm ±5% |
| Bend radius (moving) | 12 × outer Ø |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Shield | yes |
| Bend radius (fixed) | 10 × outer Ø |
| Approval (cable) | UL (AWM-Style 20236/1589), CSA; CE |
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread M23 × 1 mm (recommended torque 2.0 Nm) self-securing |
| Compression gland | M23 (SW27) |
| Protection | IP65, IP67 (M23) - IP20 (SUB-D25) |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | 16 mm |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879615785 |
| eClass | 27279218 |
| Packaging unit | 1 |
