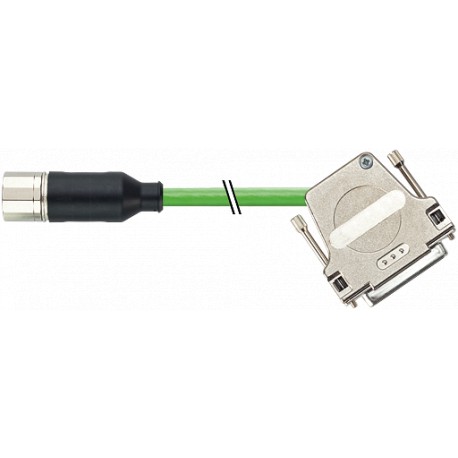

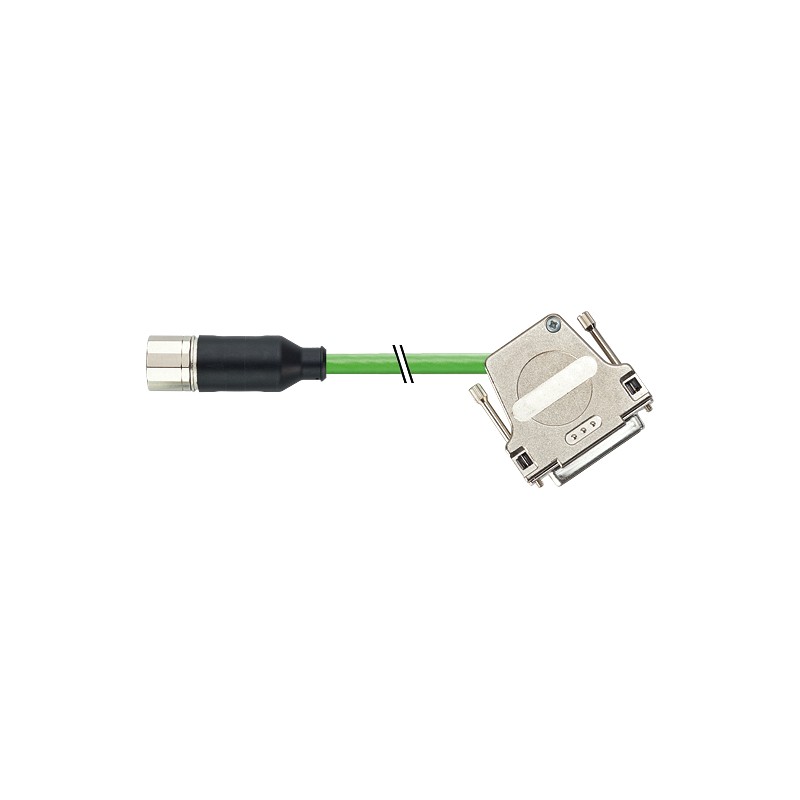

7000-SS261-8111500 MURRELEKTRONIK M23 Signal cable Specification: 6FX8002-2CA31-1BF0
7000-SS261-8111500
MURRELEKTRONIK
M23 Signal cable Specification: 6FX8002-2CA31-1BF0
M23 Sinal cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight – female 90°
M23, 17-pole – SUB-D25
shielded
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | SS261 |
|---|
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Compression gland | M23 (SW27) |
| Protection | IP65, IP67 (M23) - IP20 (SUB-D25) |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | 16 mm |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable number | 811 |
|---|---|
| No./diameter of wires | 3× (2×0.14D) + 2× 0.5 + 4× 0.14 + 4× 0.22)-C |
| Wire isolation | PP (ye, gn, bk, br, rd, or, brrd brbl, gr, bl, whye, whbk, brye, brgr, gnbk, gnrd) |
| C-track properties | 10 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.5 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Shield | yes |
| Bend radius (fixed) | 10× outer Ø |
| Approval (cable) | UL (AWM-Style 20236/1589), CSA; CE |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879637275 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-SS261-8111500 7000-SS261-8111500 EN_7000-SS261-8111500.pdf | 211 Kbytes |
|
