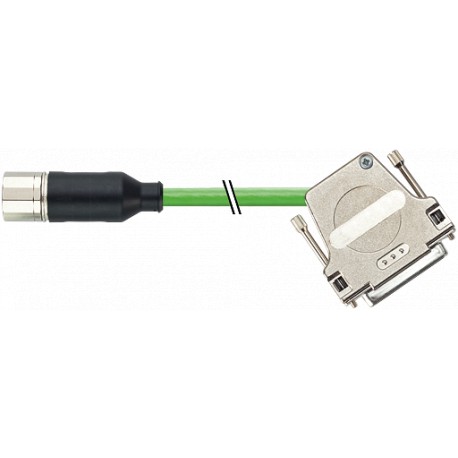

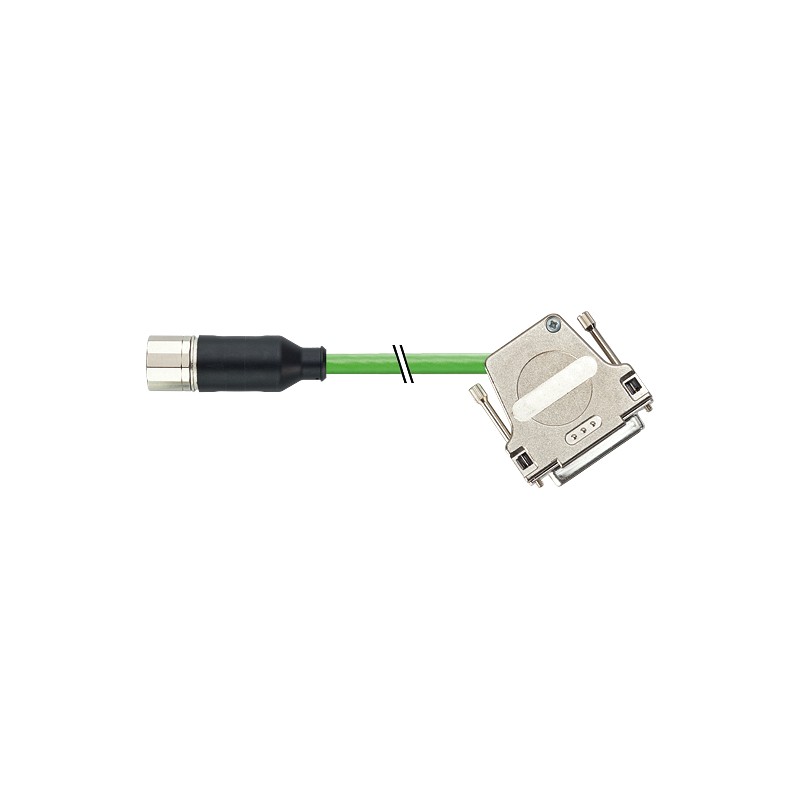

7000-SS211-8824000 MURRELEKTRONIK M23 Signal cable Specification: 6FX8002-2CH00-1EA0
7000-SS211-8824000
MURRELEKTRONIK
M23 Signal cable Specification: 6FX8002-2CH00-1EA0
M23 SIGNAL CABLESpecification: 6FX8002-2CH00-1EA0
M23 SIGNAL CABLE
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight – female 90°
M23, 17-pole – SUB-D25
shielded
Further cable lengths on request.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Plastic housings with good resistance against chemicals and oils.
| Form | SS211 |
|---|
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Protection | IP20/IP67 |
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
| Cable number | 882 |
|---|---|
| No./diameter of wires | (3× (2× 0.14D) + 2× 0.5 + 4× 0.14)-C |
| Wire isolation | PP (ye, gn, bk, br, rd, or, brrd, brbl, gr, bl, whye, whbk) |
| C-track properties | 10 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 8.9 mm ±5% |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -35...+70 °C |
| Shield | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879608176 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-SS211-8824000 7000-SS211-8824000 EN_7000-SS211-8824000.pdf | 210 Kbytes |
|
