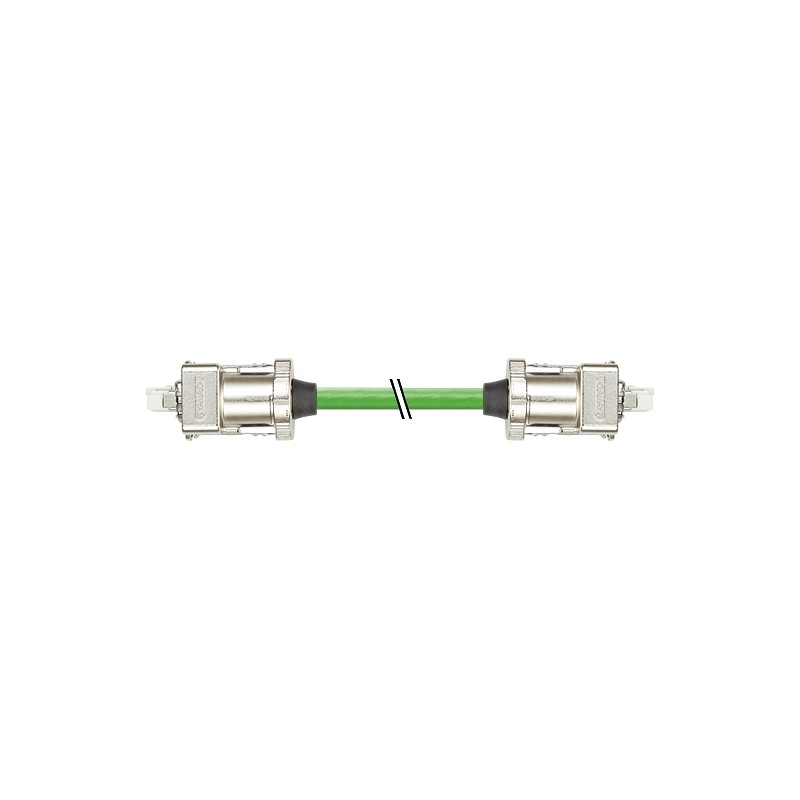

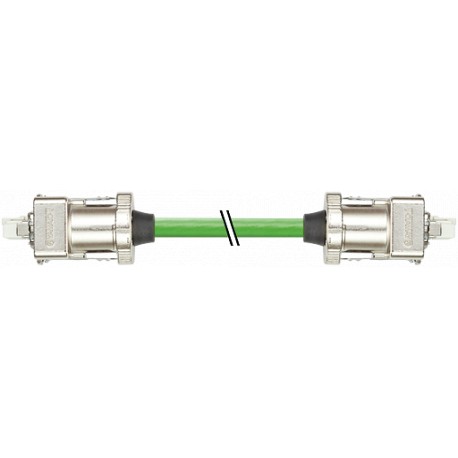

7000-SS061-8811000 MURRELEKTRONIK Drive Cliq-cable specification: 6FX5002-2DC20-1BA0
7000-SS061-8811000
MURRELEKTRONIK
Drive Cliq-cable specification: 6FX5002-2DC20-1BA0
DRIVE CLIQ CABLESpecification: 6FX5002-2DC20-1BA0
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-SS061-8811000 |
| Weight: | 0.807 kg |
Male straight – male straight
DRIVE-CLIQ IP67 – DRIVE-CLIQ IP67, 10-pole
Further cable lengths on request. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | SS061 |
|---|
| Cable number | 881 |
|---|---|
| No./diameter of wires | 2×2×AWG24 + 1×2×AWG22 |
| Wire isolation | PE (gnye, pkbl, rdbk) |
| C-track properties | 0.1 Mio. |
| Torsion stress | ±30°/m |
| Jacket Color | green |
| Material (jacket) | PVC (UL/CSA) |
| Specification | 6FX5008-1DC00 |
| Outer Ø | 6.9 mm ±5% |
| Bend radius (fixed) | 5 × outer Ø |
| Bend radius (moving) | 20 × outer Ø |
| Temperature range (fixed) | -20...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Shield | yes |
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating current per contact | max. 1.76 A |
| Material group | IEC 60664-1, category II |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Locking of ports | DRIVE-CLiQ-System |
| Protection | IP67 |
| Material | Zinc die casting, matte nickel plated |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -20...+80 °C, depending on cable quality |
| customs tariff number | 85444210 |
|---|---|
| EAN | 4048879506465 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-SS061-8811000 7000-SS061-8811000 7000-SS061-8811000_Data_Sheet_1.pdf | 126 Kbytes |
|
