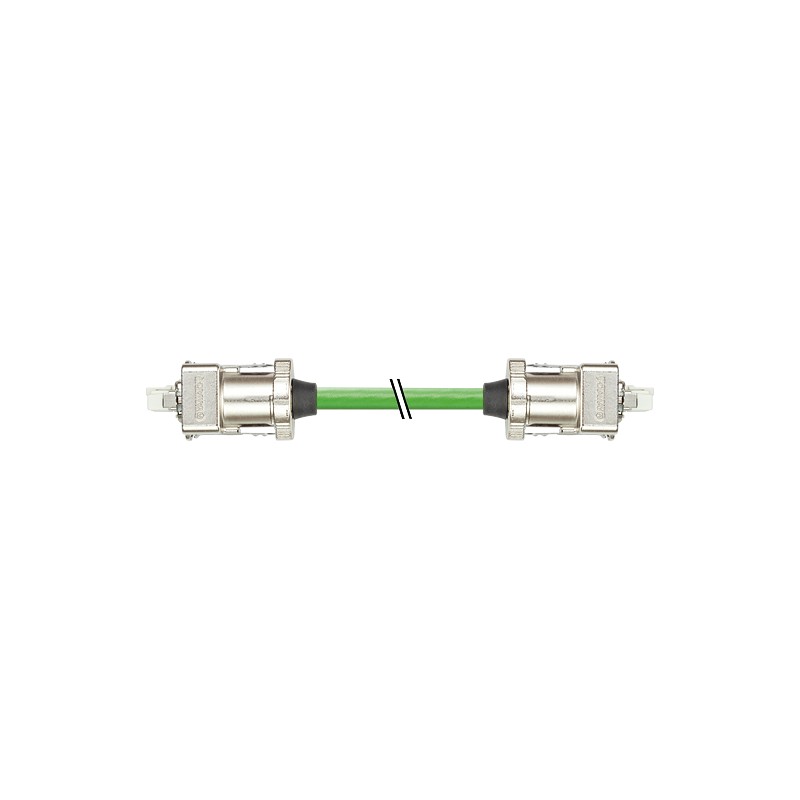

7000-SS061-8810030 MURRELEKTRONIK Drive Cliq-cable specification: M6FX5002-2DC20-1AA3
7000-SS061-8810030
MURRELEKTRONIK
Drive Cliq-cable specification: M6FX5002-2DC20-1AA3
DRIVE CLIQ CABLESpecification: M6FX5002-2DC20-1AA3
DRIVE CLIQ CABLE
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Male straight – male straight
DRIVE-CLIQ IP67 – DRIVE-CLIQ IP67, 10-pole
Further cable lengths on request.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | SS061 |
|---|
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating current per contact | max. 1.76 A |
| Material group | IEC 60664-1, category II |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Locking of ports | DRIVE-CLiQ-System |
| Protection | IP67 |
| Material | Zinc die casting, matte nickel plated |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -20...+80 °C, depending on cable quality |
| Cable number | 881 |
|---|---|
| No./diameter of wires | 2× 2× AWG24 + 1× 2× AWG22 |
| Wire isolation | PE (gnye, pkbl, rdbk) |
| C-track properties | 0.1 Mio. |
| Torsion stress | ±30°/m |
| Jacket Color | green |
| Material (jacket) | PVC (UL/CSA) |
| Specification | 6FX5008-1DC00 |
| Outer Ø | 6.9 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 20× outer Ø |
| Temperature range (fixed) | -20...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Shield | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85444210 |
| EAN | 4048879670500 |
| eClass | 27061801 |
| Packaging unit | 1 |
