7000-SS061-8800150
MURRELEKTRONIK
1

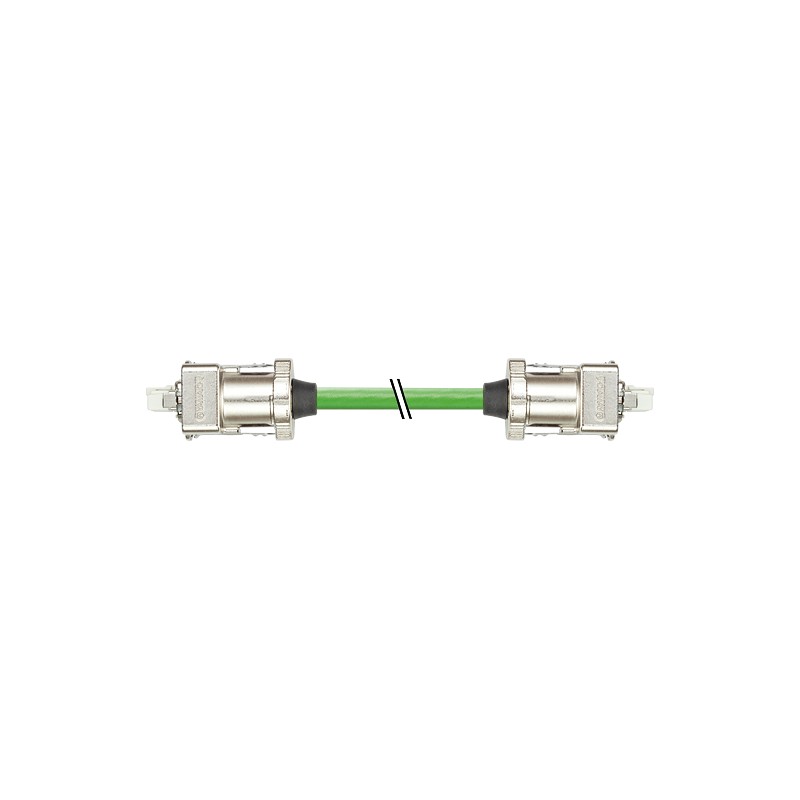

Drive Cliq-cable specification: 6FX8002-2DC20-1AB5
DRIVE CLIQ CABLE Specification: 6FX8002-2DC20-1AB5
DRIVE CLIQ CABLE
Connectors
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Form | SS061 |
---|
Operating voltage | max. 30 V AC/DC |
---|---|
Rated surge voltage | 0.5 kV |
Operating current per contact | max. 1.76 A |
Material group | IEC 60664-1, category II |
Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
Transfer rate | up to 100 Mbit/s full duplex |
Locking of ports | DRIVE-CLiQ-System |
Protection | IP67 |
Material | Zinc die casting, matte nickel plated |
Pollution Degree | 3 |
---|---|
Temperature range | -20...+80 °C, depending on cable quality |
Cable number | 880 |
---|---|
No./diameter of wires | 2× 2× 0.20 + 1× 2× 0.38 |
Wire isolation | PO (gnye, pkbl, rdbk) |
C-track properties | 5 Mio. |
Jacket Color | green |
Material (jacket) | PUR (UL/CSA) |
Outer Ø | 6.9 mm ±5% |
Bend radius (moving) | 10× outer Ø |
Temperature range (fixed) | -20...+80 °C |
Temperature range (mobile) | -20...+60 °C |
Shield | yes |
optical shield cover | min. 85% |
Material (jacket) | PUR |
Torsion stress | ±30°/m |
Specification | MC800+ (6FX8008-1DC00) |
country of origin | DE |
---|---|
customs tariff number | 85444210 |
EAN | 4048879483247 |
eClass | 27061801 |
Packaging unit | 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
7000-SS061-8800150 7000-SS061-8800150 EN_7000-SS061-8800150.pdf | 123 Kbytes | |
