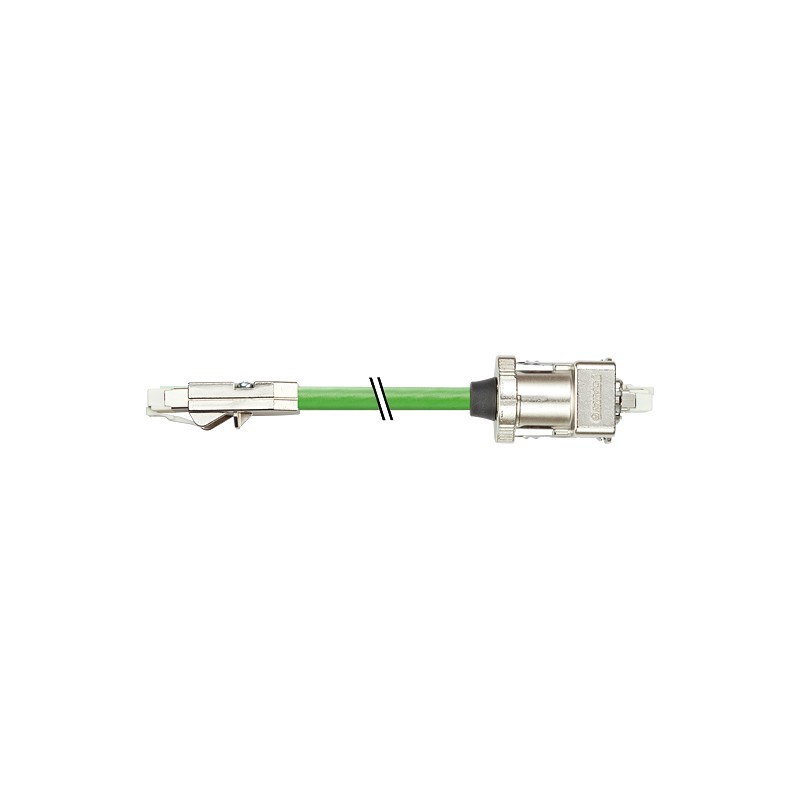

7000-SS051-8801850 MURRELEKTRONIK Drive Cliq-cable specification: 6FX8002-2DC10-1BJ5
7000-SS051-8801850
MURRELEKTRONIK
Drive Cliq-cable specification: 6FX8002-2DC10-1BJ5
DRIVE CLIQ CABLE Specification: 6FX8002-2DC10-1BJ5
DRIVE CLIQ CABLE
Connectors
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DRIVE-CLiQ signal cable for SINAMICS S120 and motors with DC 24 V wires
Male straight – male straight
DRIVE-CLIQ IP20 – DRIVE-CLIQ IP67, 10-pole
Further cable lengths on request.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – male straight
DRIVE-CLIQ IP20 – DRIVE-CLIQ IP67, 10-pole
Further cable lengths on request.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
| Form | SS051 |
|---|
Technical Data
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating current | max. 1.76 A |
| Material group | IEC 60664-1, category II |
| Locking of ports | DRIVE-CLiQ-System |
| Protection | IP20/IP67 |
General data
| Pollution Degree | 3 |
|---|---|
| Mounting method | pluggable |
| Temperature range | -20...+80 °C, depending on cable quality |
Cables
| Cable number | 880 |
|---|---|
| No./diameter of wires | 2× 2× 0.20 + 1× 2× 0.38 |
| Wire isolation | PO (gnye, pkbl, rdbk) |
| C-track properties | 5 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.9 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -20...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Torsion stress | ±30°/m |
| Specification | MC800+ (6FX8008-1DC00) |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444210 |
| EAN | 4048879541114 |
| eClass | 27061801 |
| Packaging unit | 1 |
