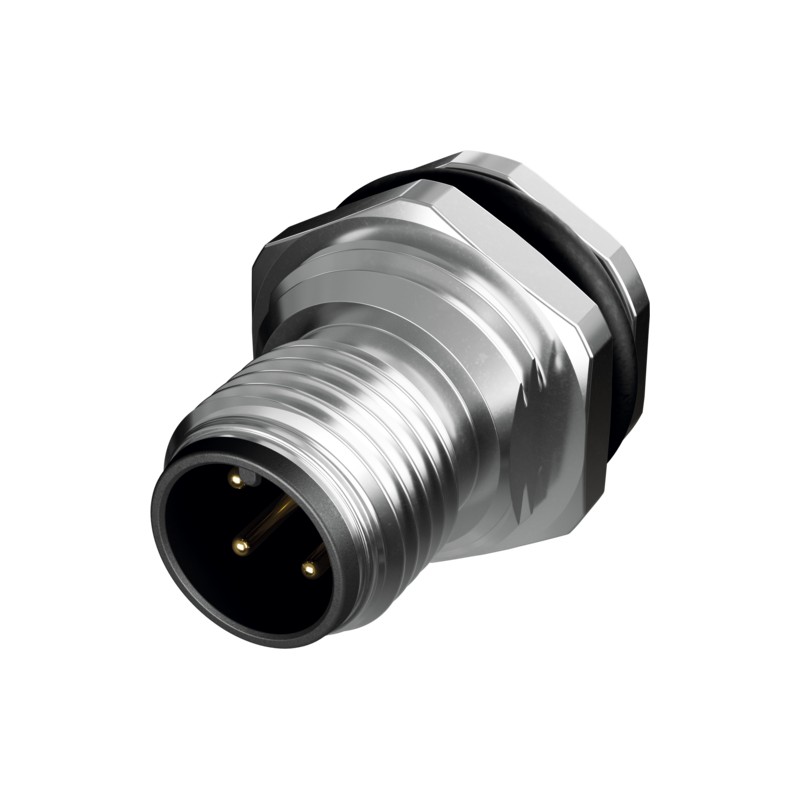

7000-R2113-11A2400 MURRELEKTRONIK M12 male 0° receptacle a-cod. rear mount 3-pol. pcb pin
7000-R2113-11A2400
MURRELEKTRONIK
10
M12 male receptacle 0° A-cod. rear3-pol., PCB pin
M12 male receptacle 0° A-cod. rear
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 3-pole
Male straight
A-coded
THT-solder connection
Rear mounting
| Form | R2113 |
|---|
| Operating voltage | 250 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| No. of poles | 3 |
| Coding | A-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Connection | THT-solder connection |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Copper alloy, nickel plated |
| Compression gland | M12 (SW17) |
| Isolation resistance | > 100 MOhm |
| Contact resistance | max. 10 MOhm |
| Material (contact) | Copper alloy, gold plated |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -40...+85 °C |
| Material (housing) | Copper alloy |
| Material (contact carrier) | PA66 |
| Product article number of manufacturer | 7000-R2113-11A2400 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-R2113-11A2400 7000-R2113-11A2400 EN_7000-R2113-11A2400.pdf | 97 Kbytes |
|
| Download general catalog |
|
