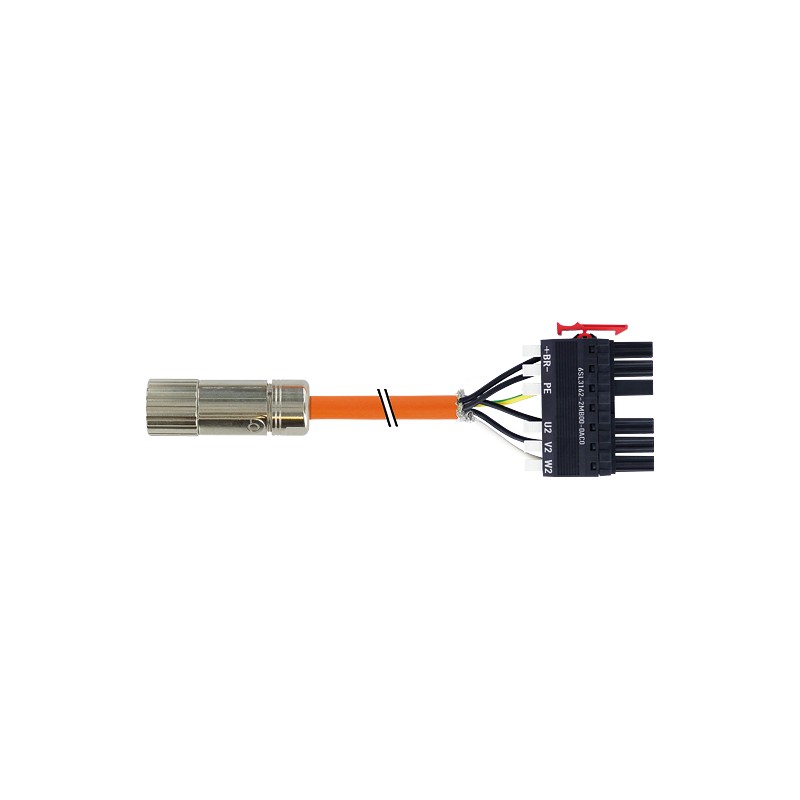

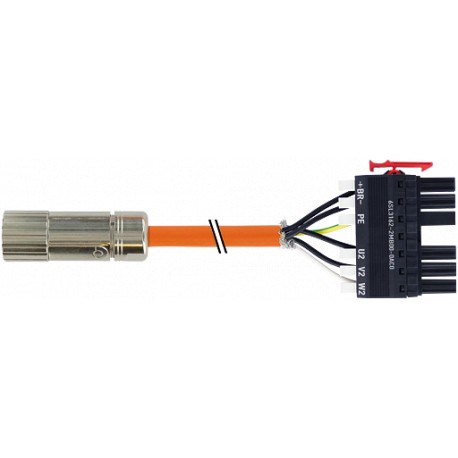

7000-PS412-8631000 MURRELEKTRONIK M23 Servo cable Specification: 6FX5002-5DN16-1BA0
7000-PS412-8631000
MURRELEKTRONIK
M23 Servo cable Specification: 6FX5002-5DN16-1BA0
M23 SERVO CABLESpecification: 6FX5002-5DN16-1BA0
M23 SERVO CABLE
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M23, 6-pole
Power connector SIEMENS
shielded
Power cable for SINAMICS S120 and Motors with M23 connection
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | PS412 |
|---|
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²) |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Compression gland | M23 (SW27) |
| Locking material | Brass, nickel plated |
| Material | Zinc die casting, nickel-plated |
| suitable for corrugated tube (internal Ø) | without |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable number | 863 |
|---|---|
| No./diameter of wires | (4G2.5 + (2× 1.5)C)-C |
| Wire isolation | TPM (bk num, gnye) |
| C-track properties | 0.1 Mio. |
| Jacket Color | orange |
| Material (jacket) | PVC (UL/CSA) (=MC500) |
| Outer Ø | 12.0 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -20...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Specification | 6FX5008-1BA21 |
| Cable identification | 863 |
| Approval (cable) | UL (AWM-Style 2570/10492), CSA |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 13.3 Ω/km (20 °C) |
| Single wire Ø (core) | 0.25 mm |
| Diameter (core) | (4G2.5 + (2× 1.5)C)-C |
| Material (wire isolation) | PP |
| Wire-Ø incl. isolation | 2.4 ±5% (1.5 mm²); 3.0 ±5% (2.5 mm²) |
| Color/numbering of wires | bk, wh (1.5 mm²); bk, gnye longitudinally striped (2.5 mm²) |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PVC |
| Outer-Ø (jacket) | 12.0 mm ±5% |
| Color (jacket) | orange |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Temperature range (fixed) | -20...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Bend radius (fixed) | 5× outer Ø |
| Torsion stress | ±30°/m |
| country of origin | HU |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879681551 |
| eClass | 27279218 |
| Packaging unit | 1 |
