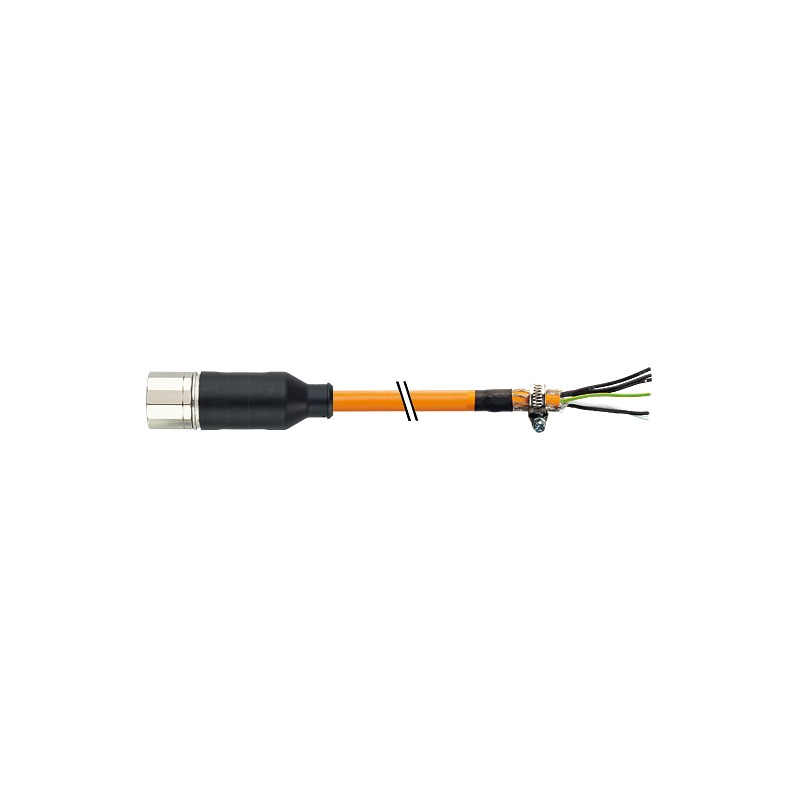

7000-PS206-8691000 MURRELEKTRONIK M23 Servo cable specification: 6FX5002-5CG01-1BA0
7000-PS206-8691000
MURRELEKTRONIK
M23 Servo cable specification: 6FX5002-5CG01-1BA0
M23 SERVO CABLE specification: 6FX5002-5CG01-1BA0
M23 SERVO CABLE
Connectors
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight
Plastic housings with good resistance against chemicals and oils.
M23, 6-pole
4-pole used
shielded
without brake wires
Power cable for SINAMICS S120 and Motors with M23 connection
Mounting bracket
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
M23, 6-pole
4-pole used
shielded
without brake wires
Power cable for SINAMICS S120 and Motors with M23 connection
Mounting bracket
without cable sleeves
Further cable lengths on request.
Form
| Form | PS206 |
|---|
Technical Data
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²) |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Compression gland | M23 (SW27) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | 16 mm |
General data
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
Cables
| Cable number | 869 |
|---|---|
| No./diameter of wires | (4G2.5+C) |
| Wire isolation | PP (bk num, gnye) |
| C-track properties | 0.1 Mio. |
| Torsion stress | ±30°/m |
| Jacket Color | orange |
| Material (jacket) | PVC (UL/CSA) (=MC500) |
| Specification | 6FX5008-1BB21 |
| Outer Ø | 9.6 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 18× outer Ø |
| Temperature range (fixed) | -25...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Shield | yes |
| Approval (cable) | UL (AWM-Style 2570/10492), CSA |
| Diameter (core) | 4× 2.5 mm² |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879694490 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-PS206-8691000 7000-PS206-8691000 EN_7000-PS206-8691000.pdf | 104 Kbytes |
|
| Download general catalog |
|
