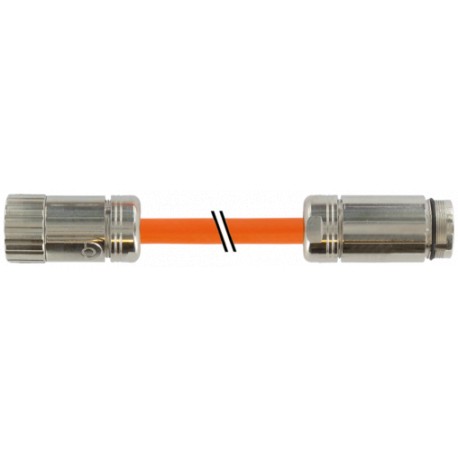

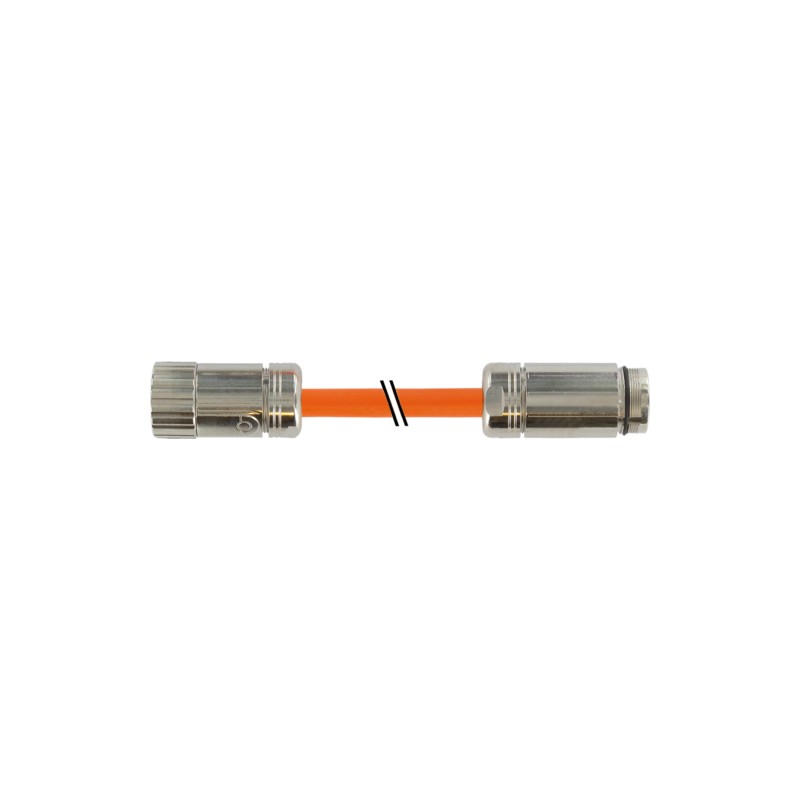

7000-PS100-8951700 MURRELEKTRONIK M40 Power Cable Specification: 6FX8002-5DA48-1BH0
7000-PS100-8951700
MURRELEKTRONIK
M40 Power CableSpecification: 6FX8002-5DA48-1BH0
M40 Power Cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight – male straight
M40
6-pole, shielded
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | PS100 |
|---|
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Material group | IEC 60664-1, category I |
| Locking of ports | M40×1.5 mm |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Locking material | Brass, nickel plated |
| Compression gland | M40 |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -20...+85 °C |
| Cable identification | 895 |
|---|---|
| Shield | yes |
| Outer-Ø (jacket) | 14.8 mm ±5% |
| Color (jacket) | orange |
| Product article number of manufacturer | 7000-PS100-8951700 |
|---|---|
| Cable length | 17 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-PS100-8951700 7000-PS100-8951700 EN_7000-PS100-8951700.pdf | 77 Kbytes |
|
| Download general catalog |
|
