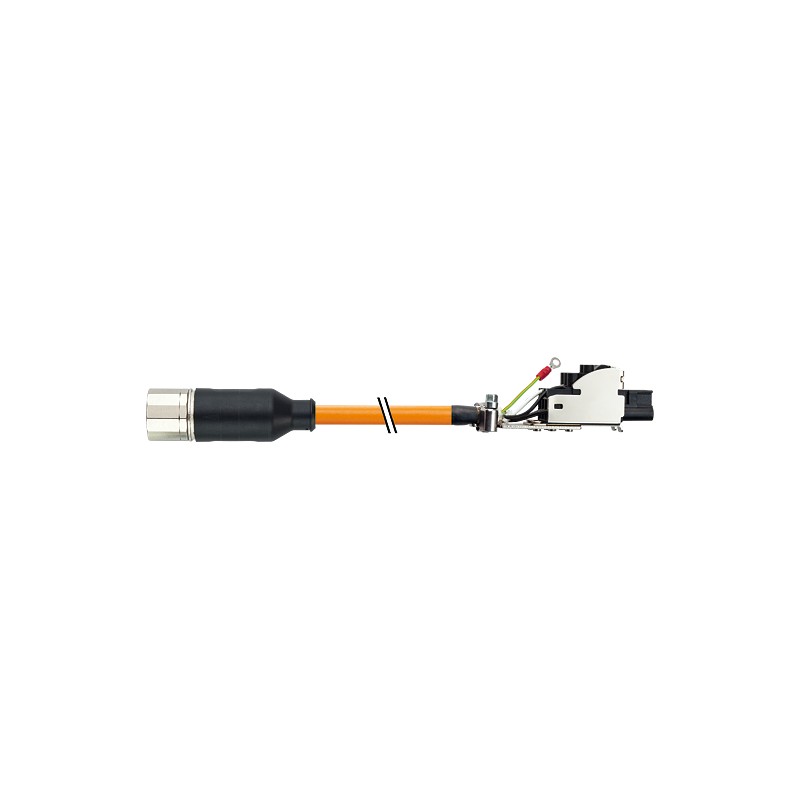

7000-PS015-8540750 MURRELEKTRONIK M23 Servo cable Specification: 6FX8002-5CS01-1AH5
7000-PS015-8540750
MURRELEKTRONIK
M23 Servo cable Specification: 6FX8002-5CS01-1AH5
M23 SERVO CABLE Specification: 6FX8002-5CS01-1AH5
M23 SERVO CABLE
Connectors
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Power cable for SINAMICS S120 and Motors with M23 connection
Female straight – pre-wired terminals
M23, 6-pole
4-pole used
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Female straight – pre-wired terminals
M23, 6-pole
4-pole used
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
| Form | PS015 |
|---|
Technical Data
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²) |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Compression gland | M23 (SW27) |
| Protection | IP20/IP67 |
| Locking material | Brass, nickel plated |
| Material | PUR |
General data
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
Cables
| Cable number | 854 |
|---|---|
| No./diameter of wires | (4G1.5+C) |
| Wire isolation | TPM (bk num, gnye) |
| C-track properties | 10 Mio. |
| Torsion stress | ±30°/m |
| Jacket Color | orange |
| Material (jacket) | PUR (UL/CSA) (=MC800+) |
| Specification | 6FX8008-1BB11 |
| Outer Ø | 9.1 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 7.5× outer Ø |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -30...+60 °C |
| Shield | yes |
| Approval (cable) | cURus (AWM-Style 21223/10492) |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879568326 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-PS015-8540750 7000-PS015-8540750 EN_7000-PS015-8540750.pdf | 180 Kbytes |
|
| Download general catalog |
|
