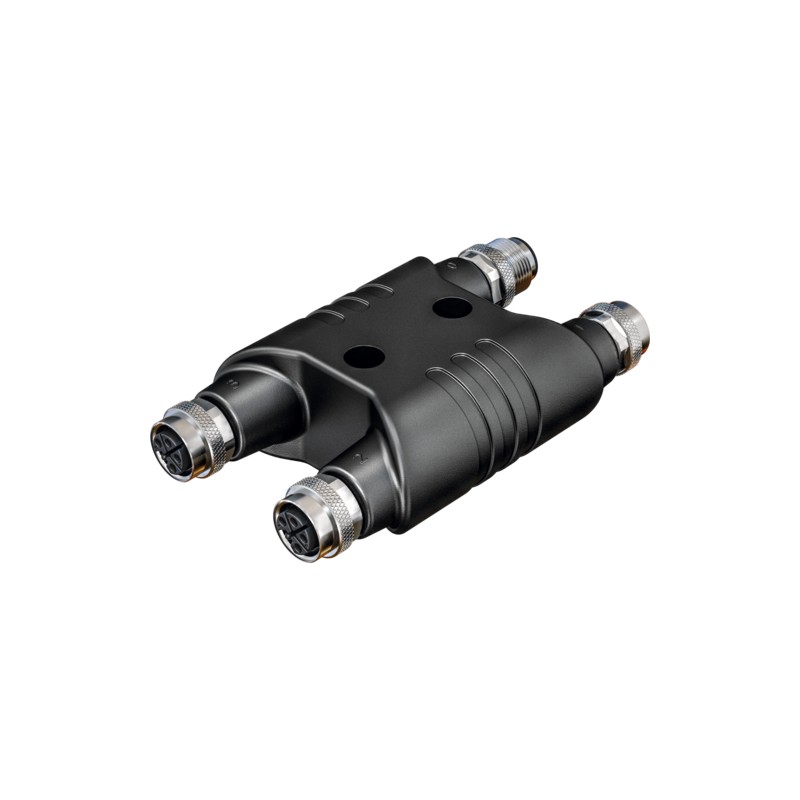

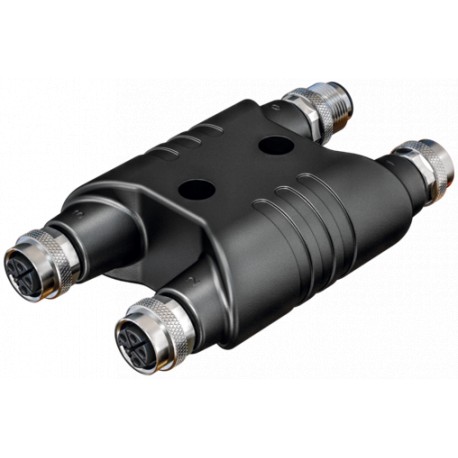

7000-P6902-0000000 MURRELEKTRONIK H coupler M12 male S-coded/ 3x M12 female S-coded
7000-P6902-0000000
MURRELEKTRONIK
H-Coupler M12 Power male S-cod. / 3x female S-cod.4-pol.
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲H coupler M12 male S-coded/ 3x M12 female S-coded
4-pole
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Operating voltage | max. 630 V AC; max. 600 V AC (UL) |
|---|---|
| Operating current per contact | 12 A |
| No. of poles | 4-pole |
| Coding | S-coded |
| LED display | no |
| Protection | IP65, IP67, IP68 |
| Standards | IEC 61076-2-111 (M12) |
|---|---|
| Material (contact) | Brass, gold plated |
| Pollution Degree | 2 |
| Temperature range | -30...+90 °C |
| Material (contact carrier) | PA |
| Product article number of manufacturer | 7000-P6902-0000000 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-P6902-0000000 7000-P6902-0000000 EN_7000-P6902-0000000.pdf | 89 Kbytes |
|
