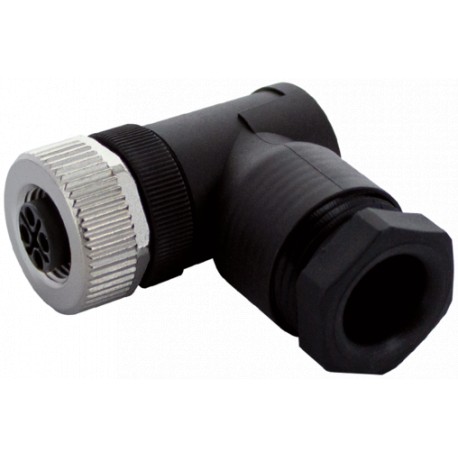

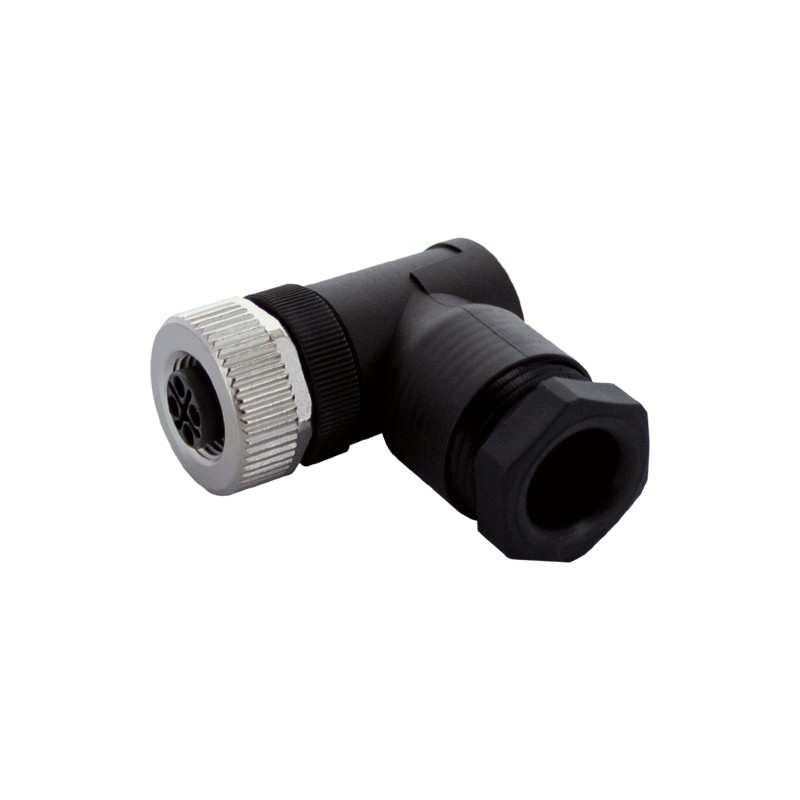

7000-P6421-0000000 MURRELEKTRONIK M12 female 90° S-coded field-wireable4-pol. max. 1,5mm²
7000-P6421-0000000
MURRELEKTRONIK
M12 Power female 90° S-cod. screw terminal4-pol., max. 2,5mm², 8 - 10mm
M12 Power female 90° S-cod. screw terminal
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 4-pole
S-coded
Screw terminals
Sealing range (cable Ø): 8...10 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Operating current per contact | max. 12 A |
| Material group | IEC 60664-1, category III |
| Coding | S-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Connection cross section | 1.5 mm² (with ferrule end); 2.5 mm² (without ferrule end) |
| Sealing range (cable Ø) | 8...10 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | PA |
| Compression gland | M12 (SW18) |
| Over voltage category | III |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -40...+85 °C |
| Product article number of manufacturer | 7000-P6421-0000000 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-P6421-0000000 7000-P6421-0000000 EN_7000-P6421-0000000.pdf | 80 Kbytes |
|
