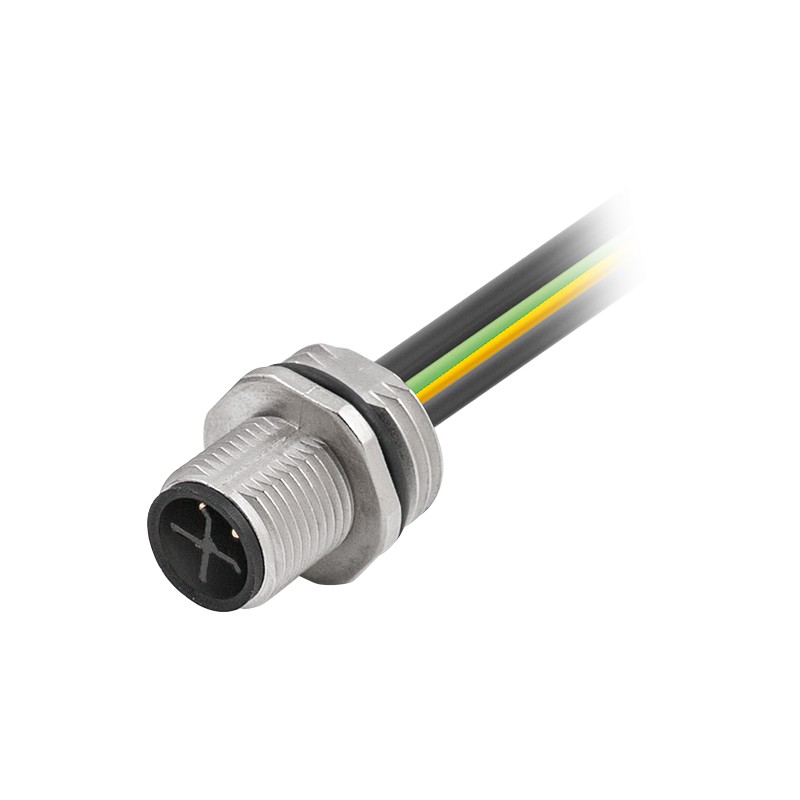

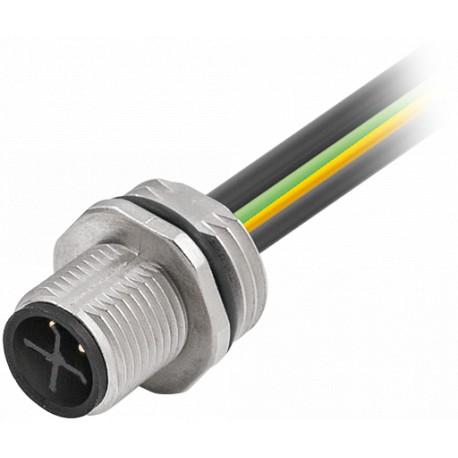

7000-P6281-9400100 MURRELEKTRONIK M12 Power S-coded male receptacle front mount mPPE 4x1.5 1m
7000-P6281-9400100
MURRELEKTRONIK
M12 Power S-coded male receptacle front mount mPPE 4x1.5 1m
Connectors
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-P6281-9400100 |
| Weight: | 0.066 kg |
M12, 4-pole
S-coded
Front mounting
with multi-strand wire
The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.
| Form | P6281 |
|---|
| Cable number | 940 |
|---|---|
| No./diameter of wires | 4 × 1.5 mm² |
| Wire isolation | PPE (bk num, gnye) |
| Temperature range (fixed) | -40...+85 °C |
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Rated surge voltage | 6 kV |
| Operating current per contact | max. 12 A |
| Material group | IEC 60664-1, category III |
| Coding | S-coded |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | Flange (SW17) |
| Protection | IP68 inserted and tightened (EN 60529) |
| Mating cycles | ≥ 100 |
| Material (contact carrier) | PA |
|---|---|
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Pollution Degree | 3 |
| Mounting set | Screw thread M16 × 1.5 mm (mounting nut) |
| Temperature range | -40...+85 °C, depending on cable quality |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879664936 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-P6281-9400100 7000-P6281-9400100 7000-P6281-9400100_Data_Sheet_1.pdf | 198 Kbytes |
|
