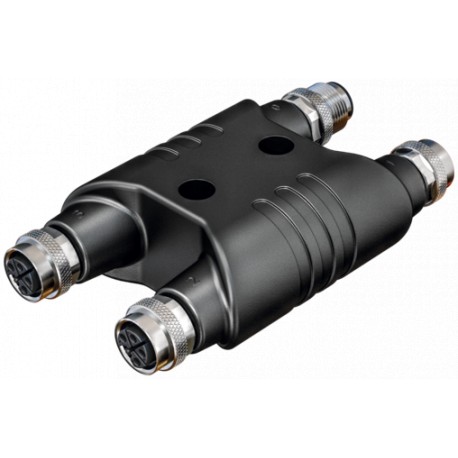

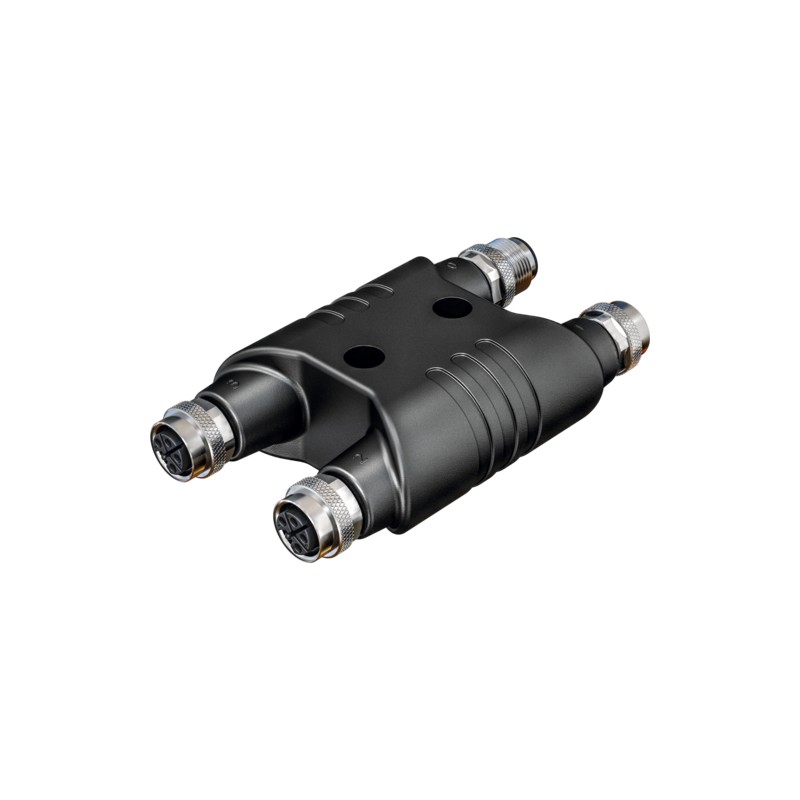

7000-P4902-0000000 MURRELEKTRONIK H coupler M12 male L-coded/ 3x M12 female L-coded
7000-P4902-0000000
MURRELEKTRONIK
H-Coupler M12 Power male L-cod. / 3x female L-cod.5-pol.
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12 Power
L-coded
4 + FE
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | P4902 |
|---|
| Operating voltage | max. 63 V DC |
|---|---|
| Operating current per contact | max. 16 A |
| No. of poles | 5 |
| Coding | L-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65, IP67, IP68 inserted and tightened (EN 60529) |
| Material | TPU |
| Compression gland | M12 (SW13) |
| Standards | IEC 61076-2-111 |
|---|---|
| Mounting method | inserted, tightened |
| Material (contact) | Brass, gold plated |
| Pollution Degree | 3 |
| Temperature range | -30...+90 °C |
| Product article number of manufacturer | 7000-P4902-0000000 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-P4902-0000000 7000-P4902-0000000 EN_7000-P4902-0000000.pdf | 98 Kbytes |
|
