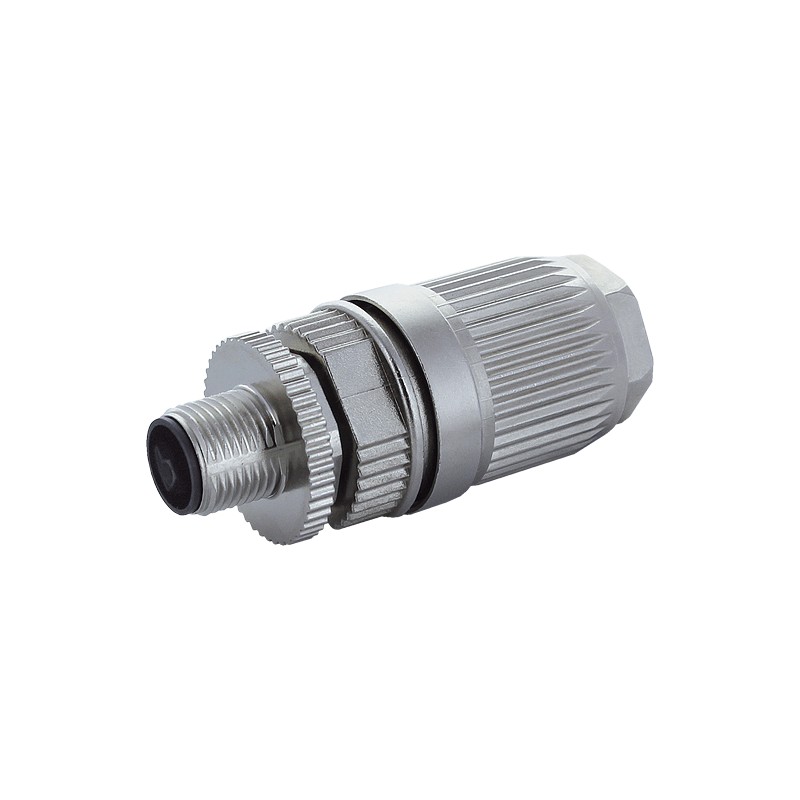

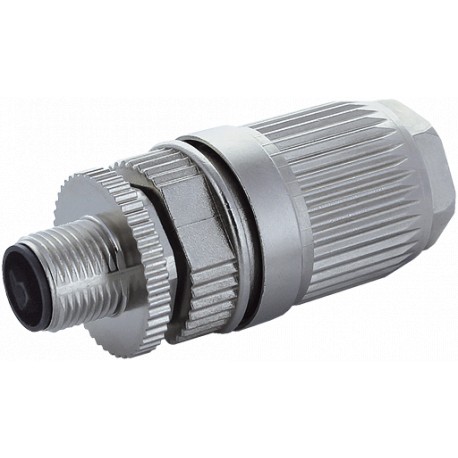

7000-P4391-0000000 MURRELEKTRONIK M12 male 0° L-coded field- wireable (IDC) 5-pol. 0,75…1,5mm²
7000-P4391-0000000
MURRELEKTRONIK
M12 male 0° L-coded field- wireable (IDC) 5-pol. 0,75…1,5mm²
M12 Power male 0° L-cod. IDC5-pol., 0,75 - 1,5mm², 5,8 - 13,5mm, shielded
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-P4391-0000000 |
| Weight: | 0.078 kg |
M12, 5-pole
L-coded
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | P4391 |
|---|
| Operating voltage | max. 63 V DC |
|---|---|
| Operating current per contact | max. 12 A |
| Connection cross section | max. 1.5 mm² |
| Coding | L-coded |
| Sealing range (cable Ø) | 5.8...13.5 mm |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M12 (SW17) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material | Zinc die casting |
| suitable for corrugated tube (internal Ø) | without |
| Mating cycles | ≥ 500 |
| Temperature range | -40...+85 °C |
|---|---|
| Material (contact carrier) | PA |
| Material (contact surface) | Au |
| country of origin | RO |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879682541 |
| eClass | 27279221 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-P4391-0000000 7000-P4391-0000000 7000-P4391-0000000_Data_Sheet_1.pdf | 194 Kbytes |
|
