7000-C0502-7940000 MURRELEKTRONIK Cable drum Ø 500MM PUR-OB shielded green UL, CSA 200m
7000-C0502-7940000
MURRELEKTRONIK
Cable drum Ø 500MM PUR-OB shielded green UL, CSA 200m
Cable drum Ø 500mmPUR 1x4xAWG22 shielded gn UL/CSA 200m
CABLE DRUM Ø 500MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Ethernet CAT5, PROFINET IO, EtherCAT
2× 2× 0.34 mm²
PUR (UL/CSA)

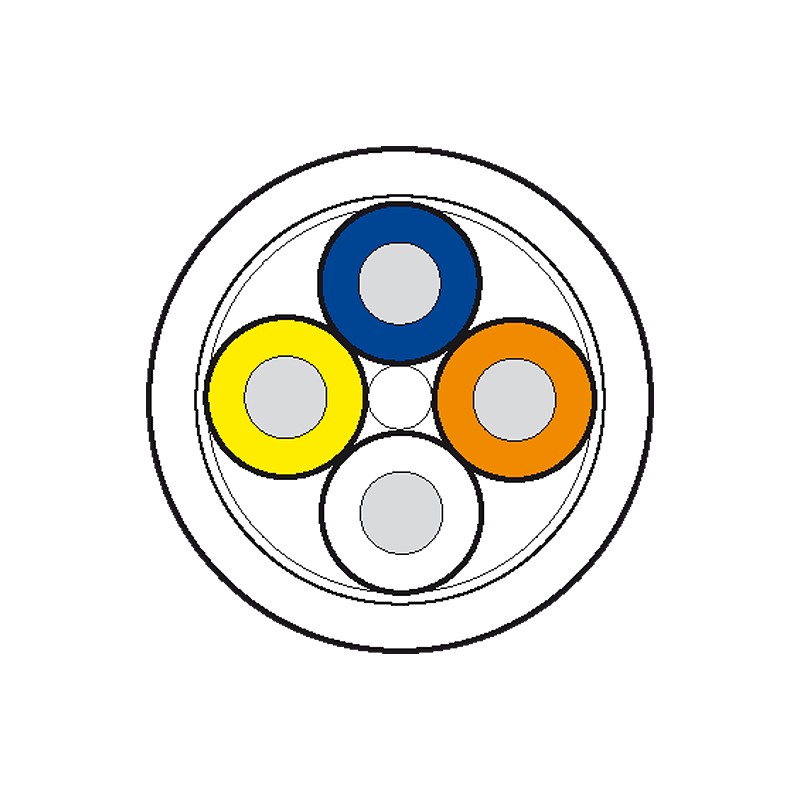

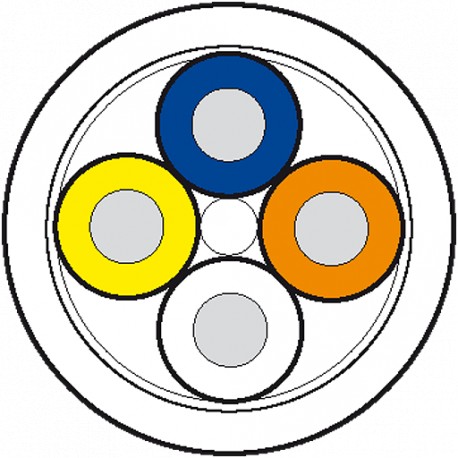

| No./diameter of wires | 2× 2× AWG22/7 (0.355) |
|---|---|
| Wire isolation | PE (wh, ye, bl, or) |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.7 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Cable identification | 794 |
| Approval (cable) | UL (AWM-Style 20233/10578), CSA; CE |
| Cable weight [g/m] | 75,87 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Construction (core) | 7× 0.254 mm |
| Diameter (core) | 2× 2× AWG22/7 (0.355) |
| AWG | similar to AWG 22 |
| Material (wire isolation) | PE |
| Wire-Ø incl. isolation | 1.55 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | green |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 6× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879530095 |
| eClass | 27062011 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-C0502-7940000 7000-C0502-7940000 EN_7000-C0502-7940000.pdf | 111 Kbytes |
|
| Download general catalog |
|
