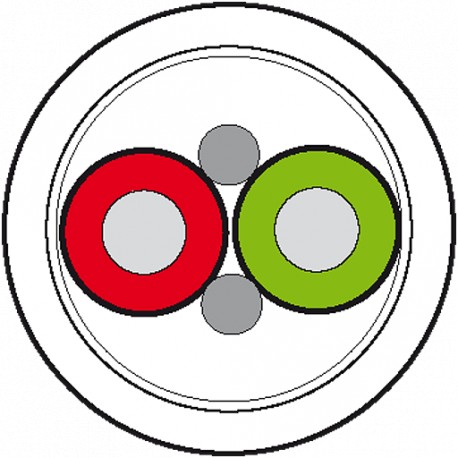

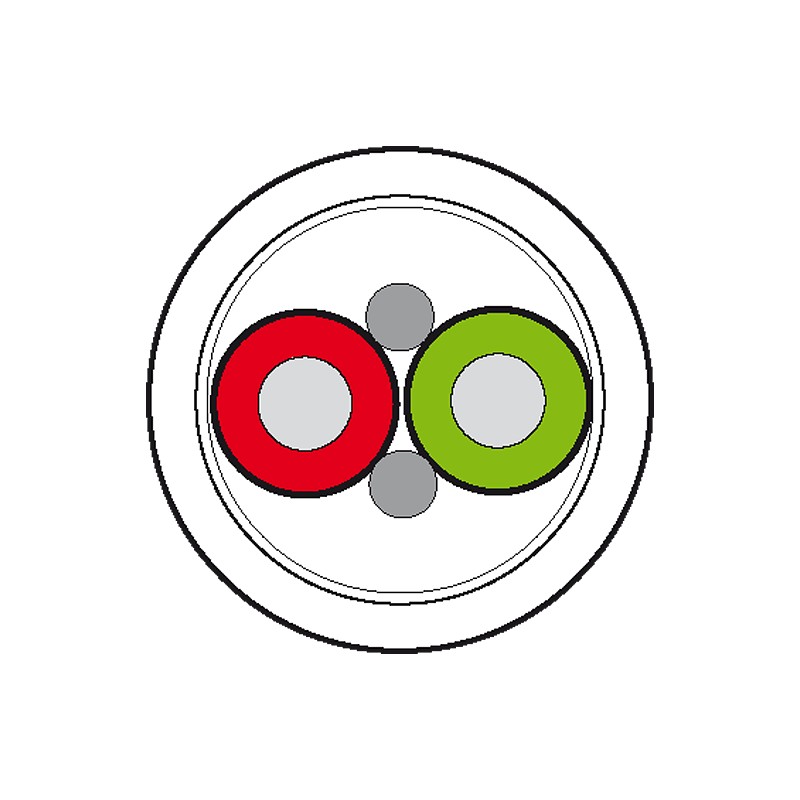

7000-C0201-8410000 MURRELEKTRONIK Cable drum Ø 355MM PUR 1x2x0.64 shielded violet 100m
7000-C0201-8410000
MURRELEKTRONIK
Cable drum Ø 355MM PUR 1x2x0.64 shielded violet 100m
Cable drum Ø 355mmPUR 1x2xAWG24 shielded vt UL/CSA+drag ch. 100m
CABLE DRUM Ø 355MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲PROFIBUS
1× 2× 0.25 mm²
PUR (UL/CSA)
suitable for C-tracks
| No./diameter of wires | 1× 2× 0.25 mm² |
|---|---|
| Wire isolation | PE (rd, gn) |
| C-track properties | 5 Mio. |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 7.7 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Cable identification | 841 |
| Approval (cable) | UL (AWM-Style 20233), CE-conform |
| Cable weight [g/m] | 70,40 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 72 Ω/km (20 °C) |
| Single wire Ø (core) | 0.13 mm |
| Construction (core) | 19× 0.13 mm |
| Diameter (core) | 1× 2× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire isolation) | ZE-PE |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 60 ±3 D |
| Wire-Ø incl. isolation | 2.55 mm ±5% |
| Color/numbering of wires | rd, gn |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Shore hardness (jacket) | 87 ±3 A |
| Outer-Ø (jacket) | 7.7 mm ±5% |
| Color (jacket) | violet |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Nominal voltage | 300 V |
| Test voltage | 1500 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Bend radius (fixed) | 7.5× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Jacket Color | violet |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879344593 |
| eClass | 27062011 |
| Packaging unit | 1 |
