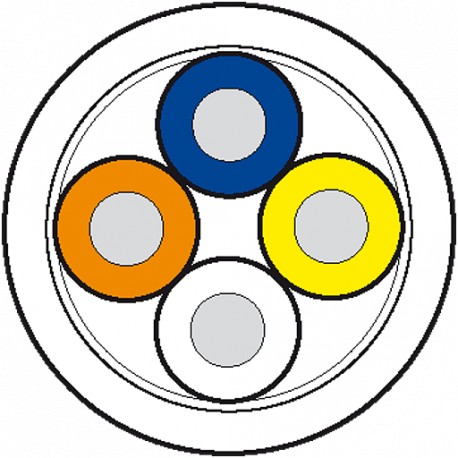

7000-C0201-8000000 MURRELEKTRONIK Cable drum Ø 355MM PVC 2x2x0,64 shielded green UL 100m
7000-C0201-8000000
MURRELEKTRONIK
Cable drum Ø 355MM PVC 2x2x0,64 shielded green UL 100m
Cable drum Ø 355mmPVC 1x4xAWG22 shielded gn UL/CSA+drag ch. 100m
CABLE DRUM Ø 355MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Ethernet CAT5, PROFINET IO, EtherCAT
2× 2× AWG22
PVC (UL/CSA)
suitable for C-tracks
2 Mio.
| No./diameter of wires | 2× 2× 0.34 mm² |
|---|---|
| Wire isolation | PE (wh, ye, bl, or) |
| C-track properties | 2 Mio. |
| Material (jacket) | PVC (UL/CSA) |
| Outer Ø | 6.5 mm ±5% |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -10...+70 °C |
| Cable identification | 800 |
| Approval (cable) | UL (AWM-Style 2571/10578), CSA; CE conform; Profinet Guideline |
| Cable weight [g/m] | 73,70 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Construction (core) | 7× 0.254 mm |
| Diameter (core) | 2× 2× AWG22/7 (0.355) |
| AWG | similar to AWG 22 |
| Material (wire isolation) | PE |
| Shore hardness (wire isolation) | 55 ±5 D |
| Wire-Ø incl. isolation | 1.52 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PVC |
| Shore hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | green |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V AC |
| Test voltage | 1000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -10...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 15× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s |
| Jacket Color | green |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879472876 |
| eClass | 27062011 |
| Packaging unit | 1 |
