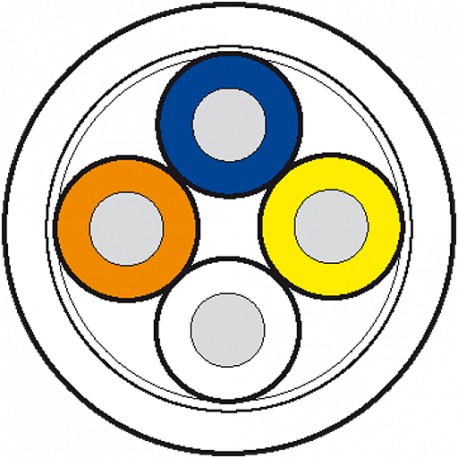

7000-C0201-7920000 MURRELEKTRONIK Cable drum Ø 355MM PUR 2x2x0.34 shielded red UL,CSA+drag chain 100m
7000-C0201-7920000
MURRELEKTRONIK
Cable drum Ø 355MM PUR 2x2x0.34 shielded red UL,CSA+drag chain 100m
Cable drum Ø 355mmPUR 1x4xAWG22 shielded rd UL/CSA+drag ch. 100m
CABLE DRUM Ø 355MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Ethernet CAT5, PROFINET IO, EtherCAT
2× 2× 0.34 mm²
PUR (UL/CSA)
suitable for C-tracks
| Cable number | 792 |
|---|---|

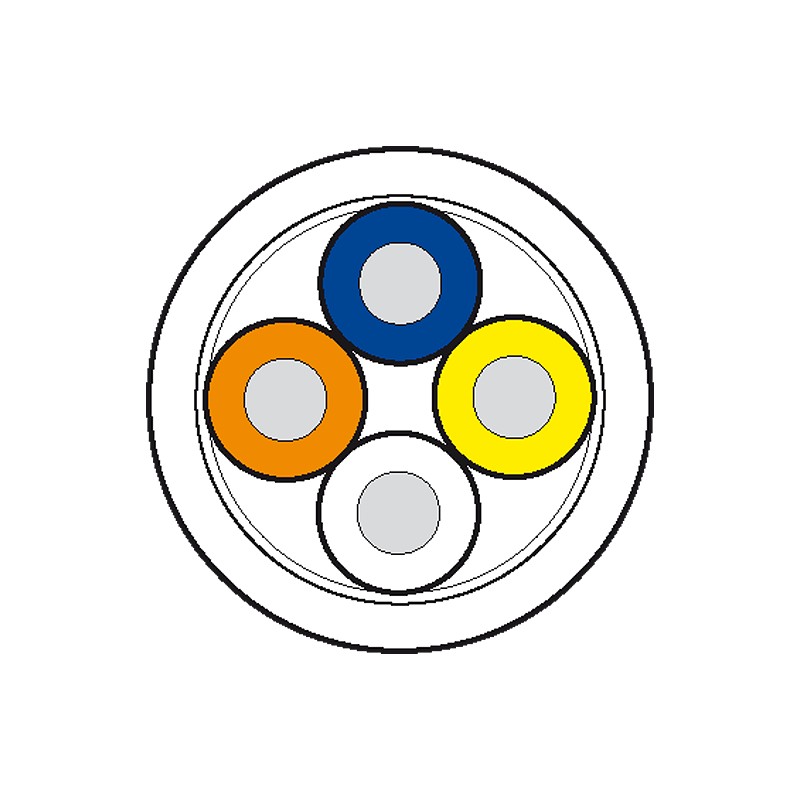

| No./diameter of wires | 2× 2× 0.34 mm² |
| Wire isolation | PO (wh, ye, bl, or) |
| C-track properties | 3 Mio. |
| Jacket Color | red |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.7 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Cable identification | 792 |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Cable weight [g/m] | 69,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 2× 2× AWG22 |
| Material (wire isolation) | PO |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | red |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879407762 |
| eClass | 27062011 |
| Packaging unit | 1 |
