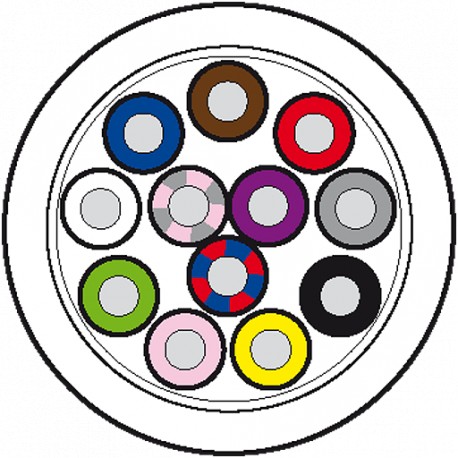

7000-C0201-7030000 MURRELEKTRONIK Cable drum Ø 355MM PVC 12x0.14 shielded black 100m
7000-C0201-7030000
MURRELEKTRONIK
Cable drum Ø 355MM PVC 12x0.14 shielded black 100m
cable drum Ø 355mm
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲PVC
12× 0.14 mm², black
| No./diameter of wires | 12× 0.14 mm² |
|---|---|
| Wire isolation | PVC (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl) |
| Outer Ø | 6.5 mm ±5% |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Cable identification | 703 |
| Cable Type | 1 (PVC) |
| Approval (cable) | cURus (AWM-Style 2464/173) |
| Cable weight [g/m] | 73,70 |
| Resistor (core) | max. 138 Ω/km (20 °C) |
| Material (wire) | Cu wire, bare |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 18× 0.1 mm (multi-strand wire class 5) |
| Diameter (core) | 12× 0.14 mm² |
| AWG | similar to AWG 26 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Shore hardness (wire isolation) | 45 ±5 D |
| Wire-Ø incl. isolation | 1.05 mm ±5% |

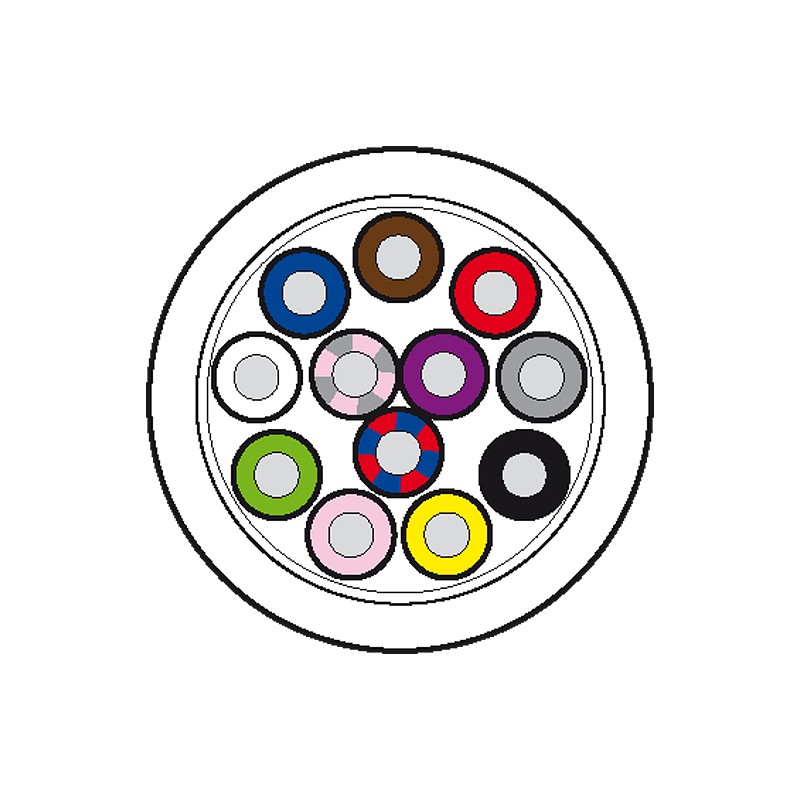

| Color/numbering of wires | br, rd, gr, bk, ye, pk, gn, wh, bl, rdbl, grpk, vi |
| Stranding combination | Twisted wires rdbl, grpk and vi, over it all other wires are twisted |
| Shield | yes |
| Material (jacket) | PVC |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Shore hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Nominal voltage | UL 300 V AC |
| Test voltage | 2000 V |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Jacket Color | black |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879643214 |
| eClass | 27062011 |
| Packaging unit | 1 |
