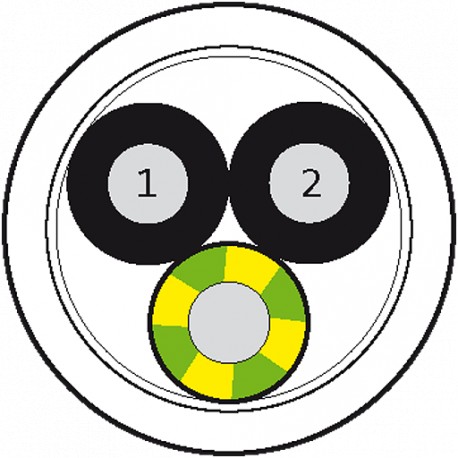

7000-C0201-4920000 MURRELEKTRONIK Cable drum Ø 355MM PUR 3X0.75 shielded gray, 100m
7000-C0201-4920000
MURRELEKTRONIK
Cable drum Ø 355MM PUR 3X0.75 shielded gray, 100m
Cable drum Ø 355mmPUR 3x0.75 shielded gy 100m
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-C0201-4920000 |
| Weight: | 7.917 kg |
PUR
3 × 0.75 mm², grey
| Cable identification | 492 |
|---|---|
| Approval (cable) | CE conform |
| Cable weight [g/m] | 70,40 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24 × 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 3 × 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.8 mm ±5% |
| Color/numbering of wires | bk numbered, gnye longitudinally striped |
| Stranding combination | 3 wires twisted |
| Shield | yes |
| min. 85% | |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Shore hardness (jacket) | 80 ±5 A |
| Outer-Ø (jacket) | 6.1 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300/500 V AC |
| Test voltage | 3 000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (fixed) | 10 × outer Ø |
| Bend radius (moving) | 15 × outer Ø |
| Jacket Color | gray |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879404945 |
| eClass | 27062011 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-C0201-4920000 7000-C0201-4920000 7000-C0201-4920000_Data_Sheet_1.pdf | 104 Kbytes |
|
| Download general catalog |
|
