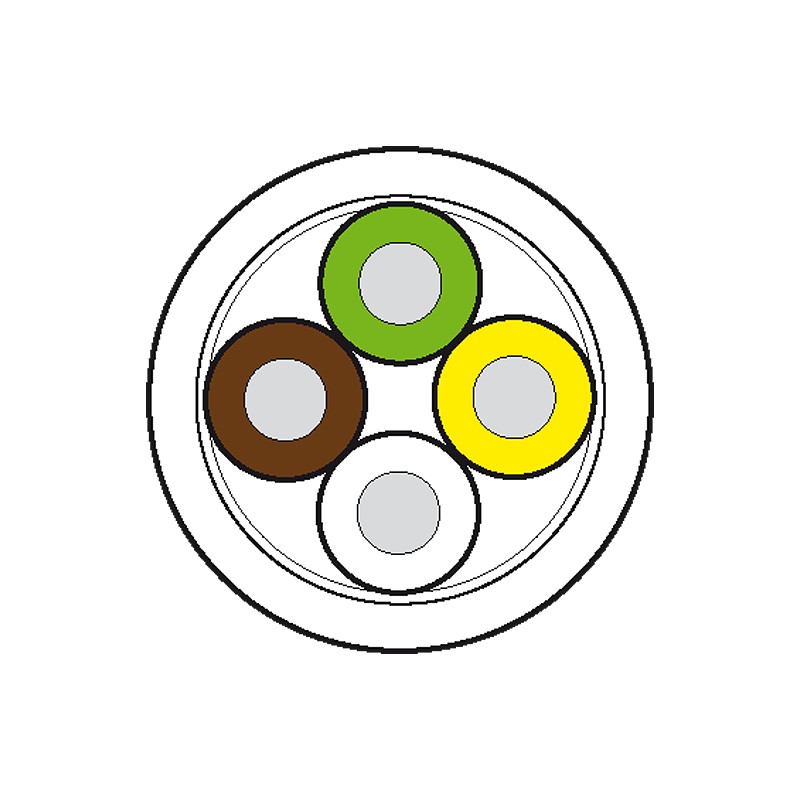

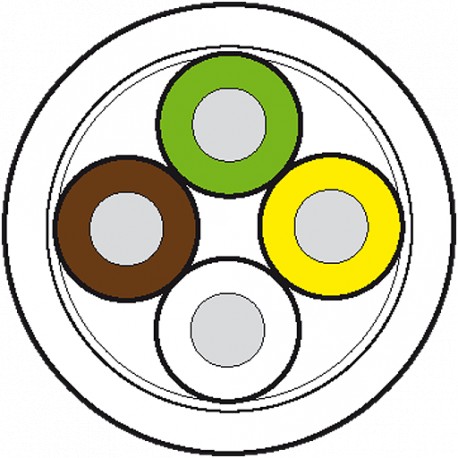

7000-C0201-3350000 MURRELEKTRONIK Cable drum Ø 355MM PUR 4X0.34 shielded gray, UL/CSA 100m
7000-C0201-3350000
MURRELEKTRONIK
Cable drum Ø 355MM PUR 4X0.34 shielded gray, UL/CSA 100m
CABLE DRUM Ø 355MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲PUR (UL/CSA)
4× 0.34 mm², gray
shielded
| No./diameter of wires | 4× 0.34 mm² |
|---|---|
| Wire isolation | PP (br, wh, bl, bk) |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Cable identification | 335 |
| Cable Type | PUR-OB |
| Approval (cable) | UL (AWM-Style 20233/1992), CSA; CE conform |
| Cable weight [g/m] | 56,10 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 52 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Diameter (core) | 4× 0.34 mm² |
| Material (wire isolation) | PP |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 72 ±3 D |
| Wire-Ø incl. isolation | 1.55 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Stranding combination | 4 wires twisted |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Shore hardness (jacket) | 85 ±3 A |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| thermal resistance | flame retardant UL VW1, CSA FT1 |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Bend radius (fixed) | 10× outer Ø |
| Jacket Color | gray |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879385060 |
| eClass | 27062011 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-C0201-3350000 7000-C0201-3350000 EN_7000-C0201-3350000.pdf | 109 Kbytes |
|
