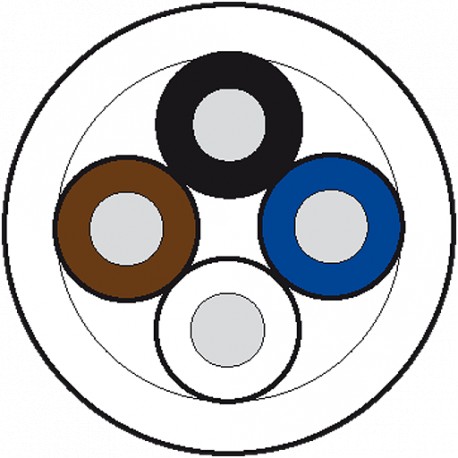

7000-C0101-7140000 MURRELEKTRONIK Cable drum Ø 355MM PUR 4x0.25 shielded black 100m
7000-C0101-7140000
MURRELEKTRONIK
Cable drum Ø 355MM PUR 4x0.25 shielded black 100m
CABLE DRUM Ø 355MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲PUR (UL/CSA)
4× 0.25 mm², black
suitable for C-tracks
5 Mio.
| Cable identification | 714 |
|---|---|
| Approval (cable) | CE conform |
| Cable weight [g/m] | 44,00 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 76 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 4× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 92 ±5 A |
| Wire-Ø incl. isolation | 1.25 mm ±5% |

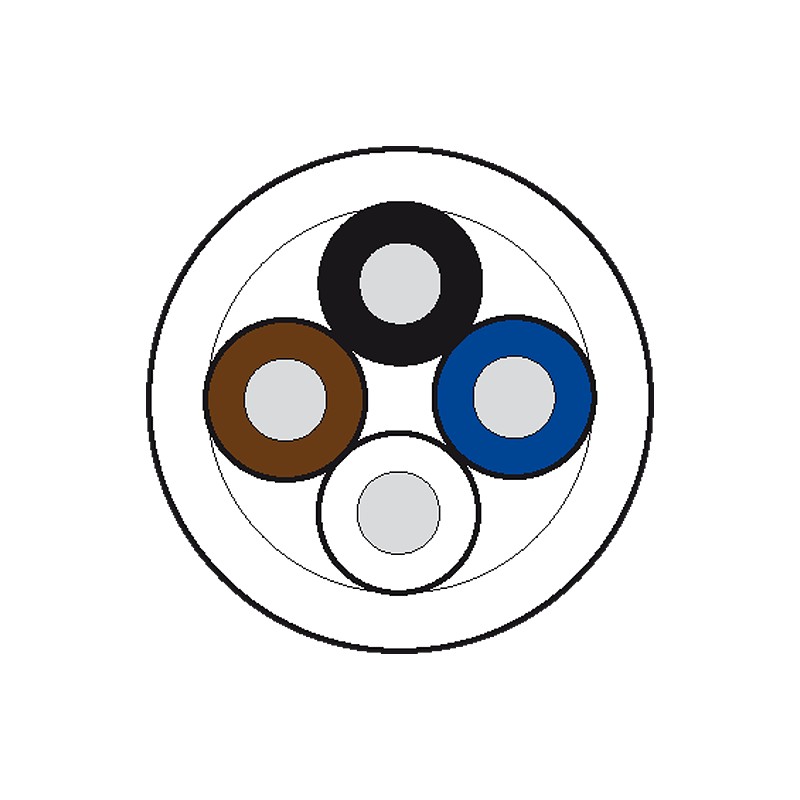

| Color/numbering of wires | br, bk, bl, wh |
| Stranding combination | 4 wires twisted |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Shore hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 5.1 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300/500 V AC |
| Test voltage | 1500 V AC |
| Current load capacity | according to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Bend radius (moving) | 15× outer Ø |
| Jacket Color | black |
| country of origin | IT |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879340625 |
| eClass | 27062011 |
| Packaging unit | 1 |
