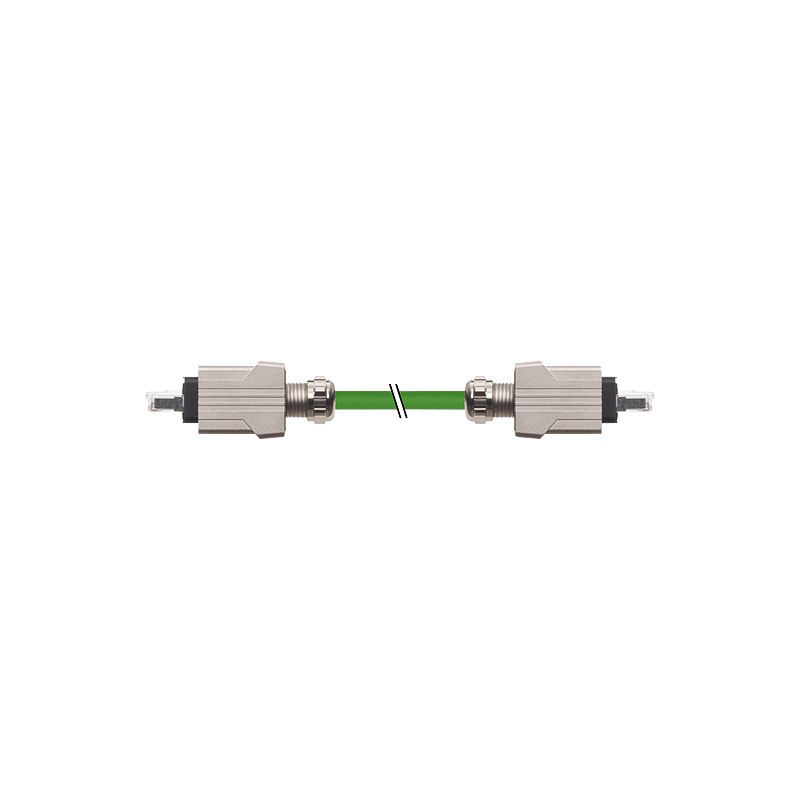

7000-99651-7961000 MURRELEKTRONIK Push Pull RJ45 / Push Pull RJ45, Profinet PUR 2x2xAWG22 shielded green UL/.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

7000-99651-7961000 MURRELEKTRONIK Push Pull RJ45 / Push Pull RJ45, Profinet PUR 2x2xAWG22 shielded green UL/..

7000-99651-7961000

MURRELEKTRONIK

Push Pull RJ45 / Push Pull RJ45, Profinet PUR 2x2xAWG22 shielded green UL/CSA + drag chain 10m

More details


Connectors with cable

Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total: $268.06
Unit price: $268.06
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


PUR 2x2xAWG22 shielded gn UL/CSA+dragchain 10m
Art.No.: 7000-99651-7961000
Alternative product: Product Comparison
Male straight – male straight
RJ45PP – RJ45PP, 4-pole
shielded
Push Pull
CAT5e
without cable sleeves
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
Form99651
Cables
Cable number796
No./diameter of wires2×2×0.34 mm²
Wire isolationPE (wh, ye, bl, or)
C-track properties3 Mio.
Jacket Colorgreen
Material (jacket)PUR (UL/CSA)
Outer Ø6.7 mm ±5%
Bend radius (moving)12 × outer Ø
Temperature range (fixed)-40...+80 °C
Temperature range (mobile)-30...+70 °C
Cable identification796
Approval (cable)UL (AWM-Style 20233/11602), CSA; CE
Cable weight [g/m]71
Material (wire)Cu wire, bare
Resistor (core)max. 55 Ω/km (20 °C)
Diameter (core)2×2×AWG22
Material (wire isolation)PE
Wire-Ø incl. isolation1.4 mm ±5%
Color/numbering of wireswh, ye, bl, or
Shieldyes
min. 85%
Material (jacket)PUR
Outer-Ø (jacket)6.7 mm ±5%
Color (jacket)green
thermal resistanceflame retardant
Nominal voltage300 V
Temperature range (fixed)-40...+80 °C
Temperature range (mobile)-30...+70 °C
Bend radius (fixed)5 × outer Ø
Bend radius (moving)12 × outer Ø
No. of bending cycles (C-track)max. 3 Mio. (25 °C)
Traversing distance (C-track)max. 5 m (horizontal)
Travel speed (C-track)max. 3.3 m/s
Acceleration (C-track)max. 2 m/s²
Technical Data
Operating voltagemax. 50 V DC
Operating current per contactmax. 1.75 A
Locking of portsPush Pull
ProtectionIP65 and IP67 when plugged and screwed down (EN 60529)
HousingZinc die casting, nickel-plated
Transfer parametersCAT5e, Class D (ISO/IEC 11801:2002), (EN 50173-1)
General data
Pollution Degree3
Temperature range-40...+70 °C, depending on cable quality
Commercial data
country of originDE
customs tariff number85444210
EAN4048879113557
eClass27061801
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 36 Mbytes
7000-99651-7961000 7000-99651-7961000 7000-99651-7961000_Data_Sheet_1.pdf 142 Kbytes 7000-99651-7961000 7000-99651-7961000 7000-99651-7961000_Data_Sheet_1.pdf
