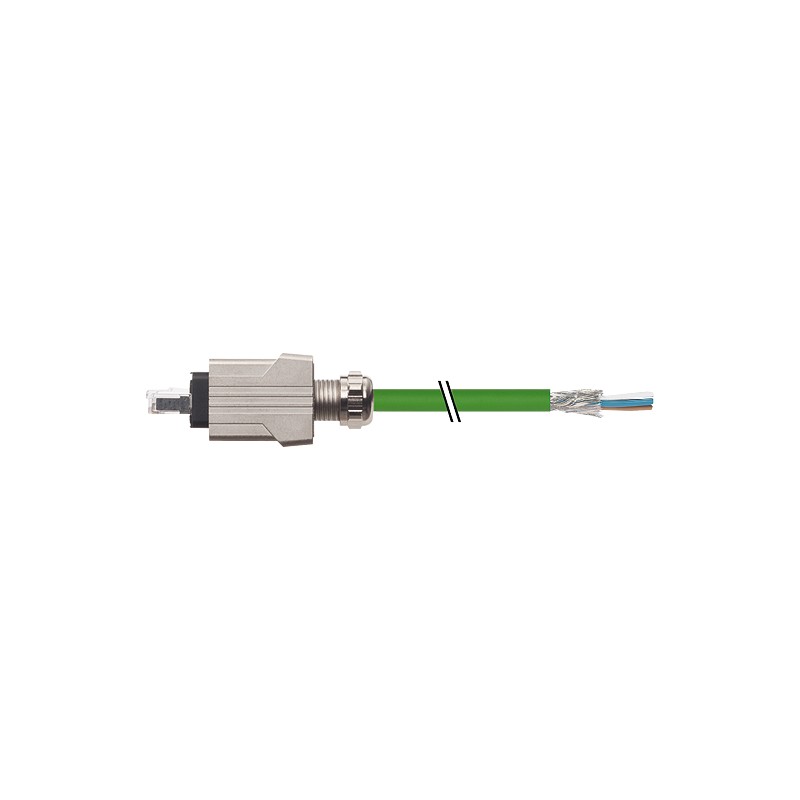

7000-99631-7963000 MURRELEKTRONIK Push Pull RJ45 with cable, Profinet PUR 2x2xAWG22 shielded green UL/CSA + ..
7000-99631-7963000
MURRELEKTRONIK
Push Pull RJ45 with cable, Profinet PUR 2x2xAWG22 shielded green UL/CSA + drag chain 30m
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-99631-7963000 |
| Weight: | 1.649 kg |
RJ45PP, 4-pole
shielded
Push Pull
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 99631 |
|---|
| Cable number | 796 |
|---|---|
| No./diameter of wires | 2×2×0.34 mm² |
| Wire isolation | PE (wh, ye, bl, or) |
| C-track properties | 3 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.7 mm ±5% |
| Bend radius (moving) | 12 × outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Cable identification | 796 |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Cable weight [g/m] | 71 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 2×2×AWG22 |
| Material (wire isolation) | PE |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| min. 85% | |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | green |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 5 × outer Ø |
| Bend radius (moving) | 12 × outer Ø |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
| Operating voltage | max. 60 V DC |
|---|---|
| Operating current per contact | max. 1.76 A |
| Material group | IEC 60664-1, category I |
| Locking of ports | Push Pull |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Temperature range | -25...+85 °C |
|---|---|
| Pollution Degree | 3 |
| country of origin | DE |
|---|---|
| customs tariff number | 85444210 |
| EAN | 4048879113731 |
| eClass | 27061801 |
| Packaging unit | 1 |
