7000-99631-7940150
MURRELEKTRONIK
1

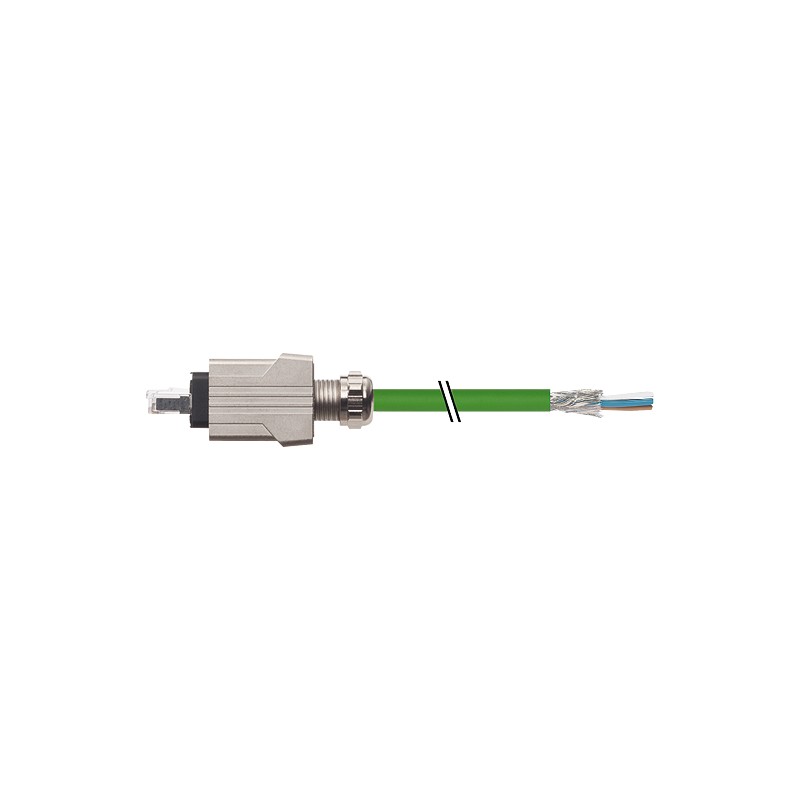

Push Pull RJ45 with cable, Profinet PUR 2x2xAWG22 shielded green UL/CSA 1,5m
Push Pull RJ45 with cable, Profinet
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Form | 99631 |
---|
Operating voltage | max. 60 V DC |
---|---|
Operating voltage (only UL listed) | max. 30 V DC |
Operating current per contact | max. 1.76 A |
Material group | IEC 60664-1, category I |
Locking of ports | Push Pull |
Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
Pollution Degree | 3 |
---|---|
Temperature range | -25...+85 °C |
No./diameter of wires | 2× 2× AWG22/7 (0.355) |
---|---|
Wire isolation | PE (wh, ye, bl, or) |
Jacket Color | green |
Material (jacket) | PUR (UL/CSA) |
Outer Ø | 6.7 mm ±5% |
Bend radius (moving) | 12× outer Ø |
Temperature range (fixed) | -40...+80 °C |
Temperature range (mobile) | -30...+70 °C |
Cable identification | 794 |
Approval (cable) | UL (AWM-Style 20233/10578), CSA; CE |
Cable weight [g/m] | 75,87 |
Material (wire) | Cu wire, bare |
Resistor (core) | max. 55 Ω/km (20 °C) |
Construction (core) | 7× 0.254 mm |
Diameter (core) | 2× 2× AWG22/7 (0.355) |
AWG | similar to AWG 22 |
Material (wire isolation) | PE |
Wire-Ø incl. isolation | 1.55 mm ±5% |
Color/numbering of wires | wh, ye, bl, or |
Shield | yes |
optical shield cover | min. 85% |
Material (jacket) | PUR |
Outer-Ø (jacket) | 6.7 mm ±5% |
Color (jacket) | green |
chemical resistance | good resistance to oil, gasoline and chemicals |
thermal resistance | flame retardant |
Nominal voltage | 300 V |
Temperature range (fixed) | -40...+80 °C |
Temperature range (mobile) | -30...+70 °C |
Bend radius (fixed) | 6× outer Ø |
Bend radius (moving) | 12× outer Ø |
country of origin | DE |
---|---|
customs tariff number | 85444210 |
EAN | 4048879331210 |
eClass | 27061801 |
Packaging unit | 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
7000-99631-7940150 7000-99631-7940150 EN_7000-99631-7940150.pdf | 83 Kbytes | |
Download general catalog |
