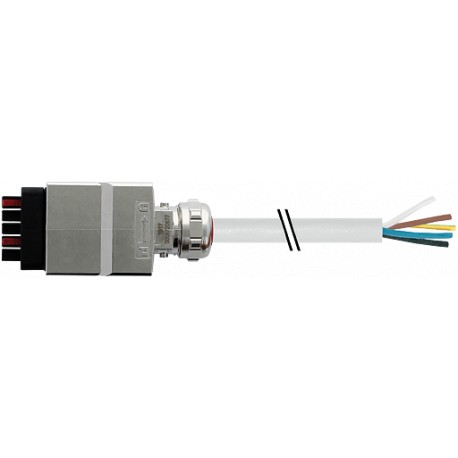

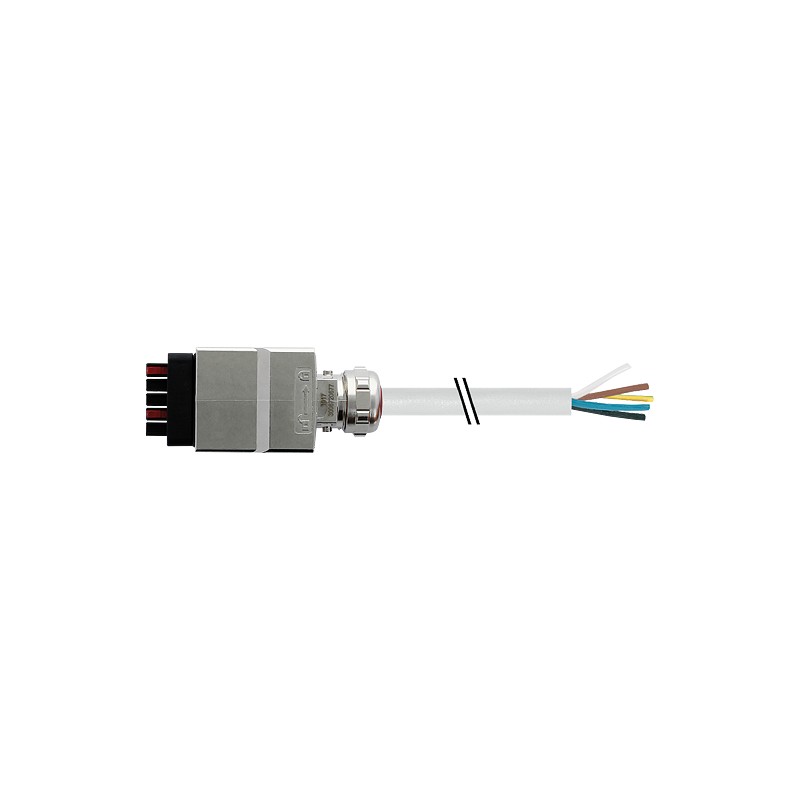

7000-99621-9625000 MURRELEKTRONIK Push Pull Power cable PURZ 5x2.5 gray, 50m
7000-99621-9625000
MURRELEKTRONIK
Push Pull Power cable PURZ 5x2.5 gray, 50m
PUSH PULL POWER PURZ 5x2.5 GRAY, 50m
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲PURZ 5x2.5 GRAY, 50m
| Art.No.: | 7000-99621-9625000 |
| Weight: | 9.926 kg |
Male straight
PPP, 5-pole
Push Pull Power
with cable sleeves
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
PPP, 5-pole
Push Pull Power
with cable sleeves
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
| Form | 99621 |
|---|
Cables
| No./diameter of wires | 5 × 2.5 mm² |
|---|---|
| Wire isolation | PP (br, wh, bl, bk num, gnye) |
| C-track properties | 5 Mio. |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.7 mm ±5% |
| Bend radius (moving) | 10 × outer Ø |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Cable identification | 962 |
| Approval (cable) | UL (AWM-Style 21223/11172), CSA; CE |
| Cable weight [g/m] | 190,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 7.98 Ω/km (20 °C) |
| Single wire Ø (core) | 0.15 mm |
| Construction (core) | 140 × 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 5 × 2.5 mm² |
| AWG | similar to AWG 14 |
| Material (wire isolation) | PP |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 60 ±5 D |
| Wire-Ø incl. isolation | 2.8 mm ±5% |
| Color/numbering of wires | bl, bk, wh, br, num; gnye longitudinally striped |
| Stranding combination | 5 wires twisted around central filler |
| Shield | no |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Shore hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 9.7 mm ±5% |
| Color (jacket) | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Nominal voltage | 600 V AC |
| Test voltage | 3 000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Bend radius (fixed) | 7.5 × outer Ø |
| Bend radius (moving) | 10 × outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Jacket Color | gray |
Technical Data
| Operating voltage | max. 24 V AC/DC |
|---|---|
| Operating current per contact | max. 16 A |
| Locking of ports | Push Pull |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
General data
| Pollution Degree | 2 |
|---|---|
| Temperature range | -40...+85 °C, depending on cable quality |
Commercial data
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879485661 |
| eClass | 27279218 |
| Packaging unit | 1 |
