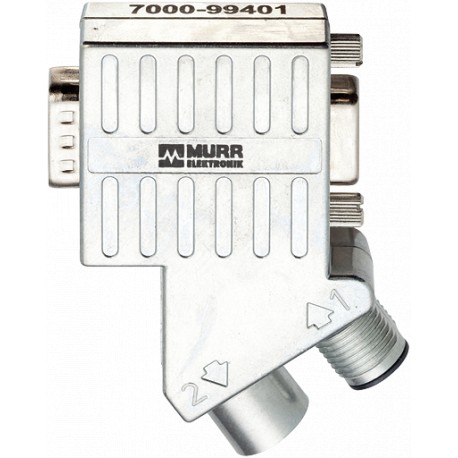

7000-99401-0000000 MURRELEKTRONIK M12/D-Sub Profibus adapter 35° M12 male B-cod./M12 female B-cod.
7000-99401-0000000
MURRELEKTRONIK
M12/D-Sub Profibus adapter 35° M12 male B-cod./M12 female B-cod.
Adapter M12 male/ female B-cod. / D-Sub 9-pol. 35°Shielded, 12Mbit/s
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-99401-0000000 |
| Weight: | 0.09 kg |
Bus connection plug 35°
SUB-D9 (male); M12×1 mm, B-coded
Programming device
| Form | 99401 |
|---|
| Operating voltage | 4.75...5.25 V DC (via the fieldbus device) |
|---|---|
| Current consumption | max. 12.5 mA |
| Transfer rate | max. 12 Mbit/s |
| Connection | M12 × 1 mm |
| Terminating resistor | integrated, switchable |
| Protection | IP30 |
| Dimensions H × W × D | 68×42×17 mm |
|---|---|
| Temperature range | -20...+70 °C |
| country of origin | HU |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879303620 |
| eClass | 27061801 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-99401-0000000 7000-99401-0000000 7000-99401-0000000_Data_Sheet_1.pdf | 97 Kbytes |
|
| Download general catalog |
|
