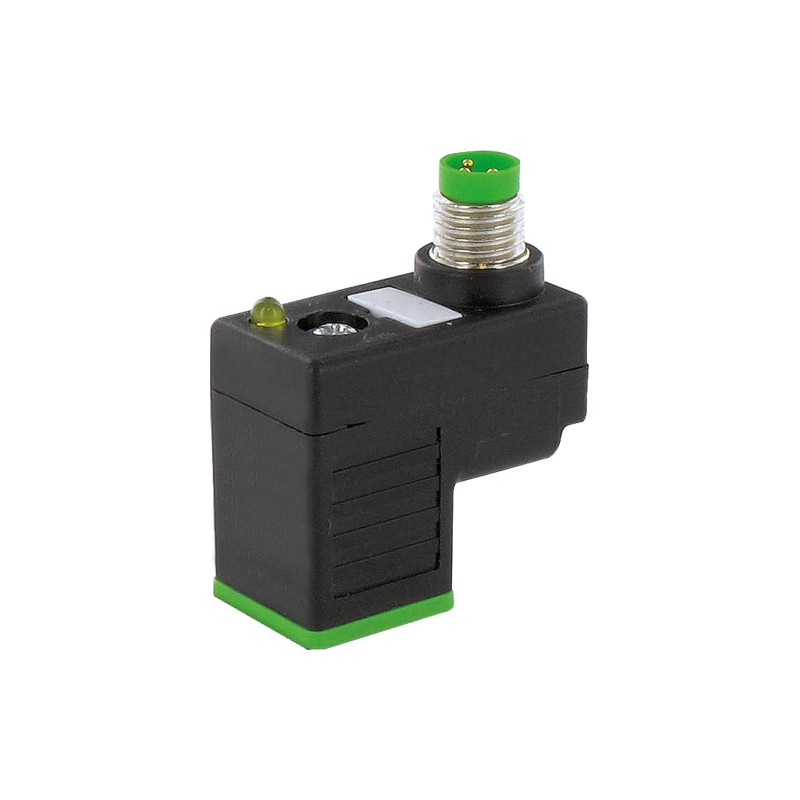

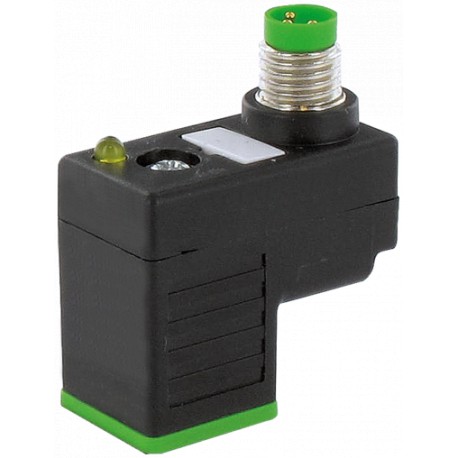

7000-88965-0000000 MURRELEKTRONIK M8 adaptor on top / MSUD valve plug form C 8 mm
7000-88965-0000000
MURRELEKTRONIK
M8 adaptor on top / MSUD valve plug form C 8 mm
M8 ADAPTOR ON TOP / MSUD VALVE PLUG FORM C 8MM
Valve connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-88965-0000000 |
| Weight: | 0.03 kg |
| Country of origin: | CZ |
Technical Data
Electrical data Supply
| Operating voltage AC | 24 V |
|---|---|
| Operating voltage AC min. | 19,2 V |
| Operating voltage AC max. | 28,8 V |
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Cut-off peak voltage max. | 55 V |
| Current operating per contact max. | 4 A |
| Current consumption max. | 15 mA |
Installation Connection
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting set | M3 / M8 |
Installation Pin assignment
| No. of poles | 2 + PE |
|---|
Device protection Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Rated surge voltage | 0,8 kV |
Environmental characteristics Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-88965-0000000 7000-88965-0000000 7000-88965-0000000_Data_Sheet_1.pdf | 226 Kbytes |
|
| Download general catalog |
|
