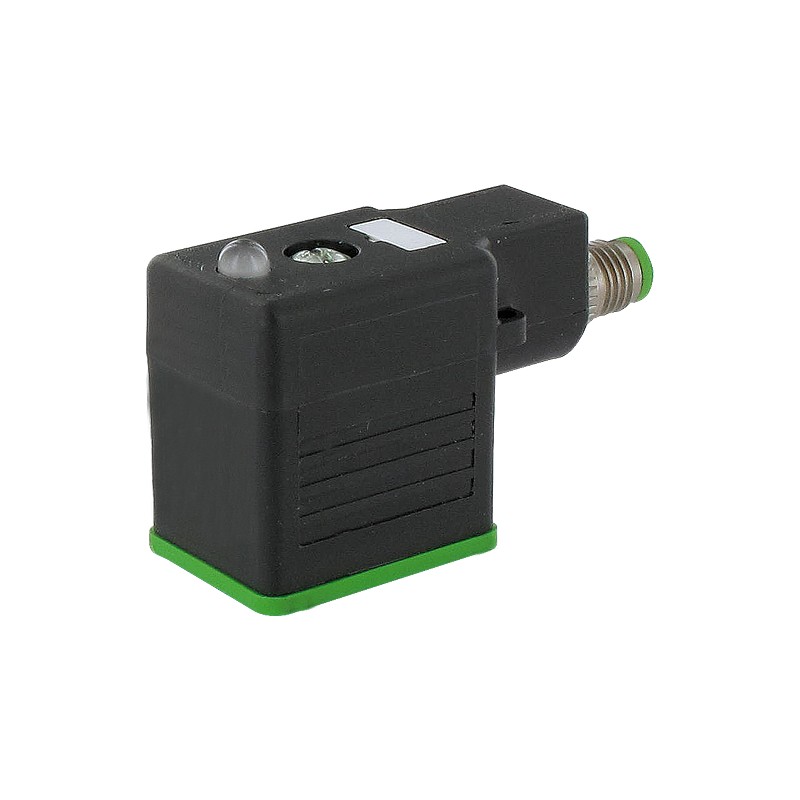

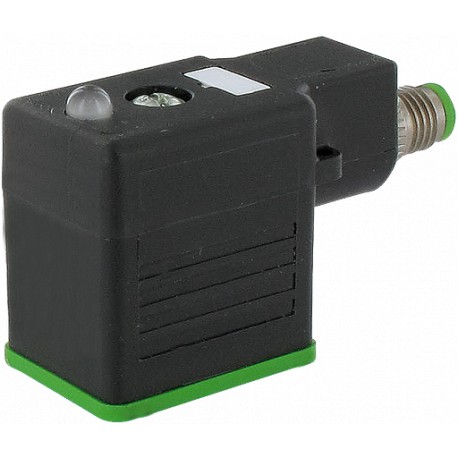

7000-88931-0000000 MURRELEKTRONIK M8 adaptor on back / MSUD valve plug form B 10 mm Without electronics 60 V..
7000-88931-0000000
MURRELEKTRONIK
M8 adaptor on back / MSUD valve plug form B 10 mm Without electronics 60 VAC/DC
Adaptor M8 on rear A-cod. / MSUD valve plug B-10mmWithout electronics 60 V AC/DC
M8 ADAPTOR ON REAR OF MSUD VALVE PLUG FORM B 10 MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲max. 60 V AC/DC
without components
3-pole
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 88931 |
|---|
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| Configuration | 2 contacts + PE |
| Material group | IEC 60664-1, category I |
| LED display | no |
| Locking of ports | M3/M8 (recommended torque 0.4 Nm) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Steel (galvanized) |
| Pollution Degree | 3 |
|---|---|
| Mounting method | inserted, tightened |
| Temperature range | -25...+85 °C |
| country of origin | CZ |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879115933 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-88931-0000000 7000-88931-0000000 EN_7000-88931-0000000.pdf | 256 Kbytes |
|
