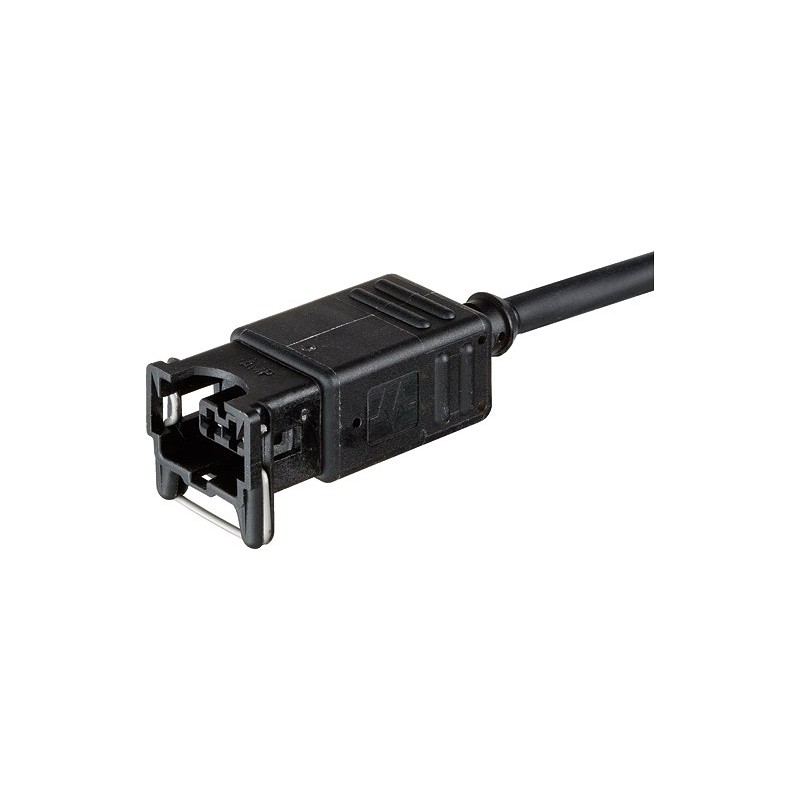

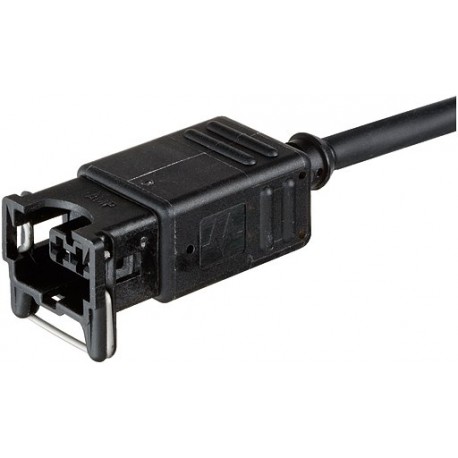

7000-70061-7502000 MURRELEKTRONIK Junior Timer valve plug LED+VDR with cable PUR 2x0,75 black 20m
7000-70061-7502000
MURRELEKTRONIK
Junior Timer valve plug LED+VDR with cable PUR 2x0,75 black 20m
Valve plug MJC 0° with cable LED+VDRPUR 2x0.75 bk 20m
JUNIOR TIMER VALVE PLUG LED VDR
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲10...24 V AC/30 V DC
LED and VDR
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Form | 70061 |
|---|
| Operating voltage | 10...24 V AC/30 V DC |
|---|---|
| Operating current per contact | max. 4 A |
| Current consumption | approx. 12 mA |
| LED display | (yellow) |
| Protection | IP65 inserted and tightened (EN 60529) |
| Housing | Black plastic, flame retardant |
| Rated surge voltage | 0.8 kV |
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
| Cable number | 750 |
|---|---|
| No./diameter of wires | 2× 0.75 mm² |
| Wire isolation | PVC (br, bl) |
| Jacket Color | black |
| Material (jacket) | PUR/PVC |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Cable identification | 750 |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 48,40 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Color/numbering of wires | br, bl |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | PUR/PVC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (moving) | 15× outer Ø |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879376815 |
| eClass | 27279218 |
| Packaging unit | 1 |
