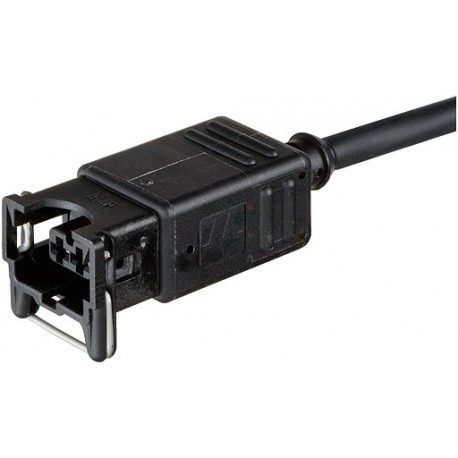

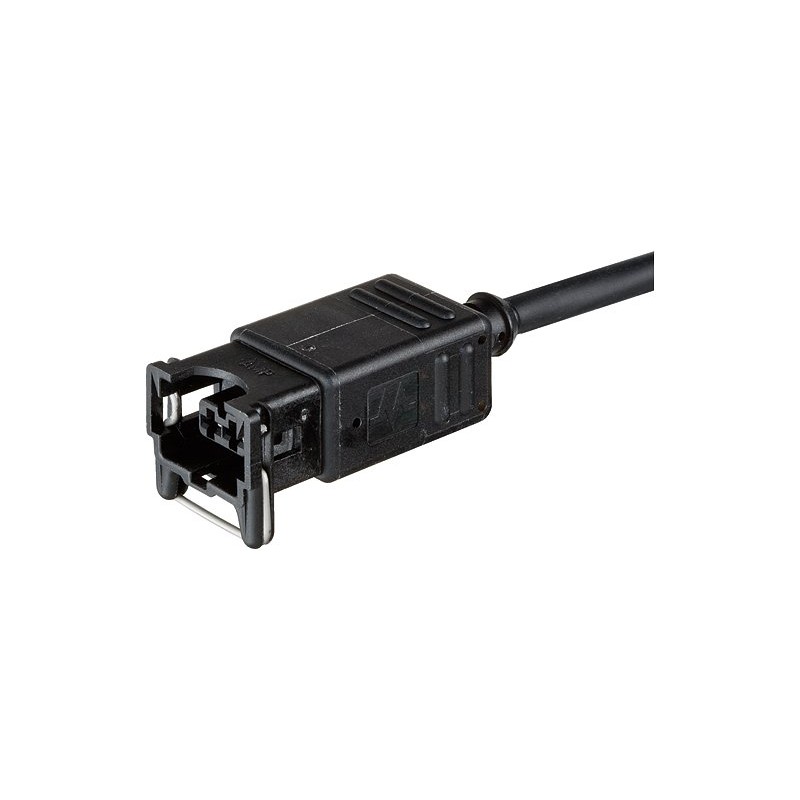

7000-70001-7520750 MURRELEKTRONIK Junior Timer valve plug with cable PVC 2x0,75 black 7.5m
7000-70001-7520750
MURRELEKTRONIK
Junior Timer valve plug with cable PVC 2x0,75 black 7.5m
JUNIOR TIMER VALVE PLUG PVC 2x0,75 black 7.5m
JUNIOR TIMER VALVE PLUG
Valve connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight
0...230 V AC/DC
without components
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
0...230 V AC/DC
without components
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Form
| Form | 70001 |
|---|
Technical Data
| Operating voltage | max. 230 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Protection | IP65 inserted and tightened (EN 60529) |
| Housing | Black plastic, flame retardant |
| Rated surge voltage | 4.0 kV |
General data
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
Cables
| Cable number | 752 |
|---|---|
| No./diameter of wires | 2× 0.75 mm² |
| Wire isolation | PVC (br, bl) |
| Jacket Color | black |
| Material (jacket) | PVC |
| Outer Ø | 5.2 mm ±5% |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -30...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Cable identification | 752 |
| Approval (cable) | CE |
| Cable weight [g/m] | 50,60 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 90 ±5 A |
| Wire-Ø incl. isolation | 1.8 mm ±5% |
| Color/numbering of wires | br, bl |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | PVC |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Shore hardness (jacket) | 80 ±5 A |
| Outer-Ø (jacket) | 5.2 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| thermal resistance | flame retardant |
| Nominal voltage | 300/500 V AC |
| Test voltage | 2000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 15× outer Ø |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879135658 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-70001-7520750 7000-70001-7520750 EN_7000-70001-7520750.pdf | 240 Kbytes |
|
